LPG Dispensers 300-S Series
LPG-300-S series dispensers are combined gasoline and LPG dispensers of the 300-S series are designed for flling liquified propane-butane (LPG) and gasoline at gas stations. LPG-300-S dispensers are two-sided, from 2 to 10 hoses. LPG-300-S are equipped with a high-quality hydraulic system and a reliable electronic computer.

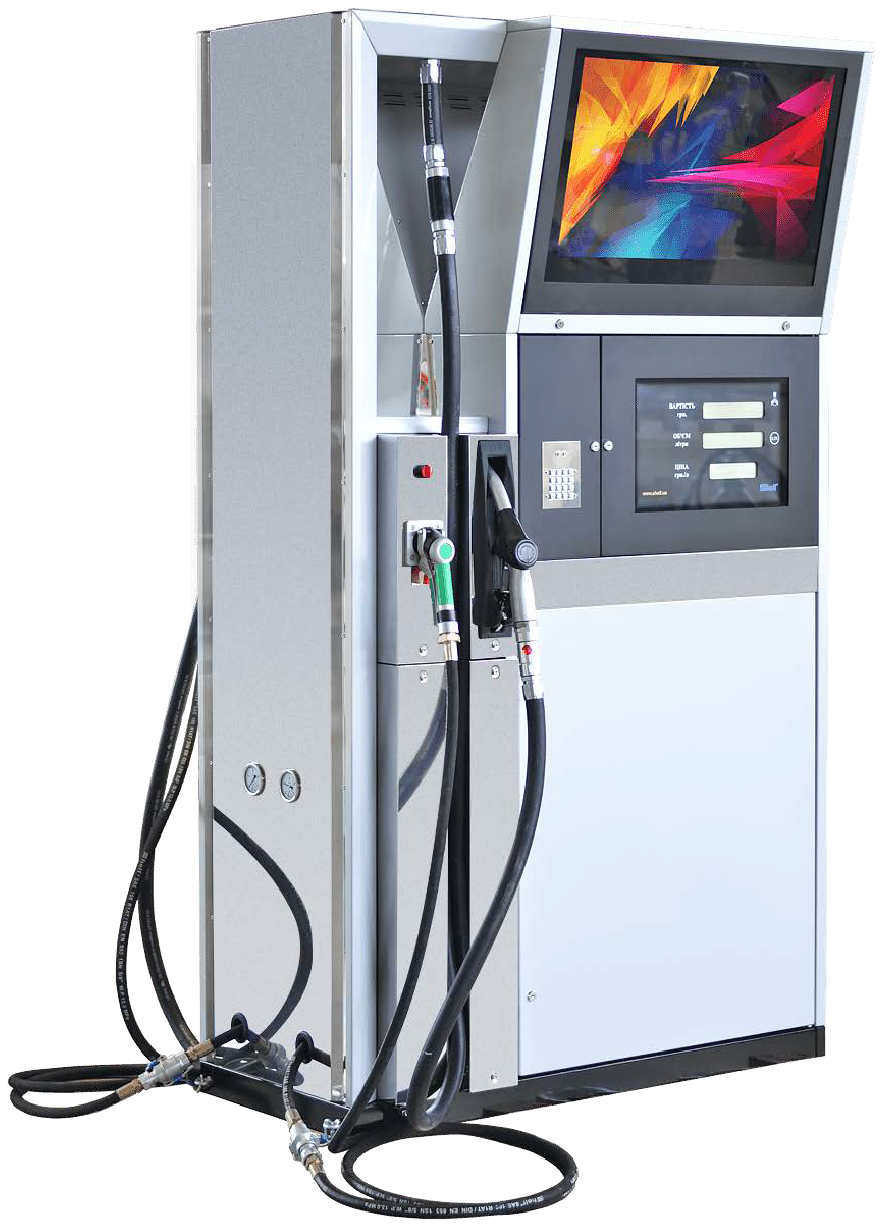

Model LPG-300-1-S #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose, high pressure hose (LPG)
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
- Display 32″
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 (gasoline, diesel), 50 ± 5 (LPG) |
| Error | ±0,5% (gasoline, diesel), ±1,0% (LPG) |
| Minimum dose of fuel delivery, l | 2/10 (gasoline, diesel), 5 (LPG) |
| Number of hoses | 2 + 2 |
| Electronic calibration | + |
| Number of pumps | 1 + LPG |
| Types of fuel | gasoline, diesel, LPG |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2350/900/1301 |

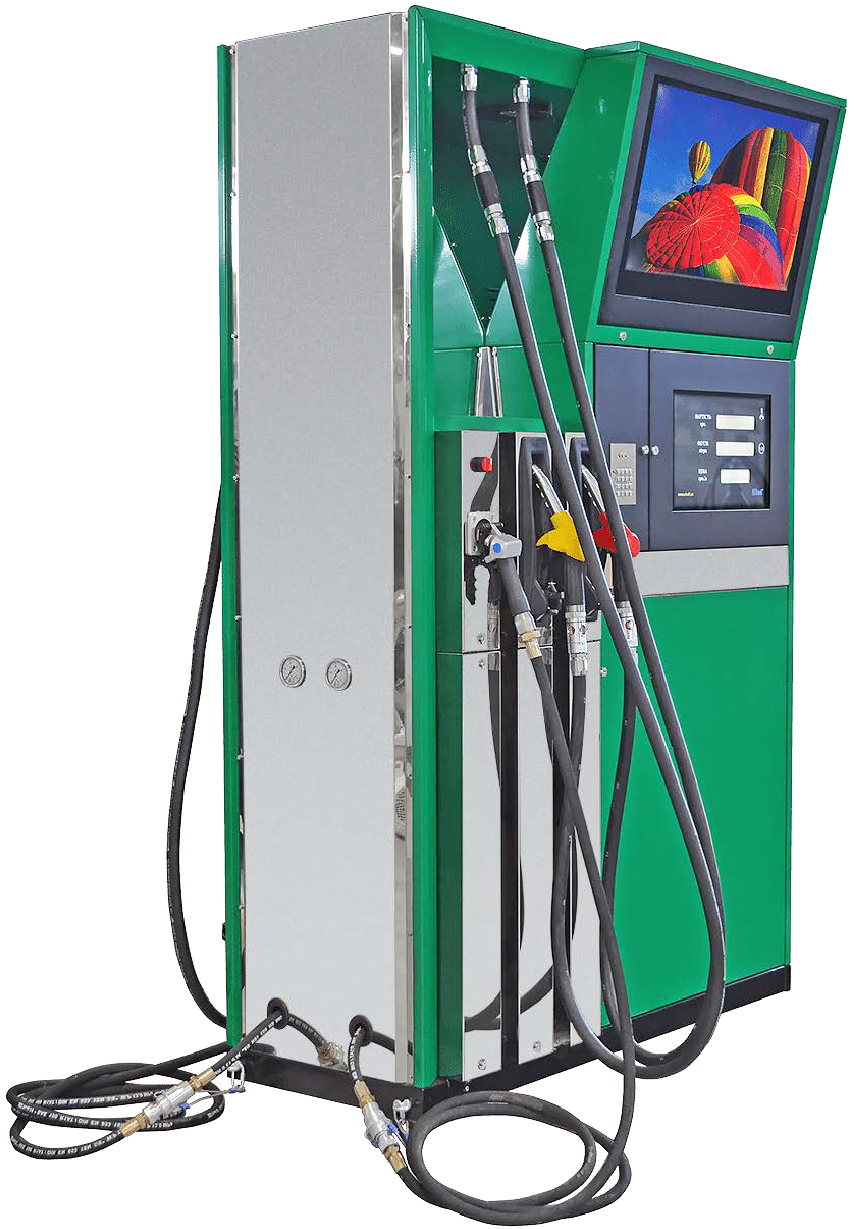

Model LPG-300-2-S #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose, high pressure hose (LPG)
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
- Display 32″
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 (gasoline, diesel), 50 ± 5 (LPG) |
| Error | ±0,5% (gasoline, diesel), ±1,0% (LPG) |
| Minimum dose of fuel delivery, l | 2/10 (gasoline, diesel), 5 (LPG) |
| Number of hoses | 4 + 2 |
| Electronic calibration | + |
| Number of pumps | 2 + LPG |
| Types of fuel | gasoline, diesel, LPG |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2350/900/1481 |
| Weight, kg | 559 |

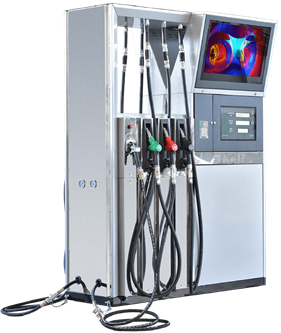

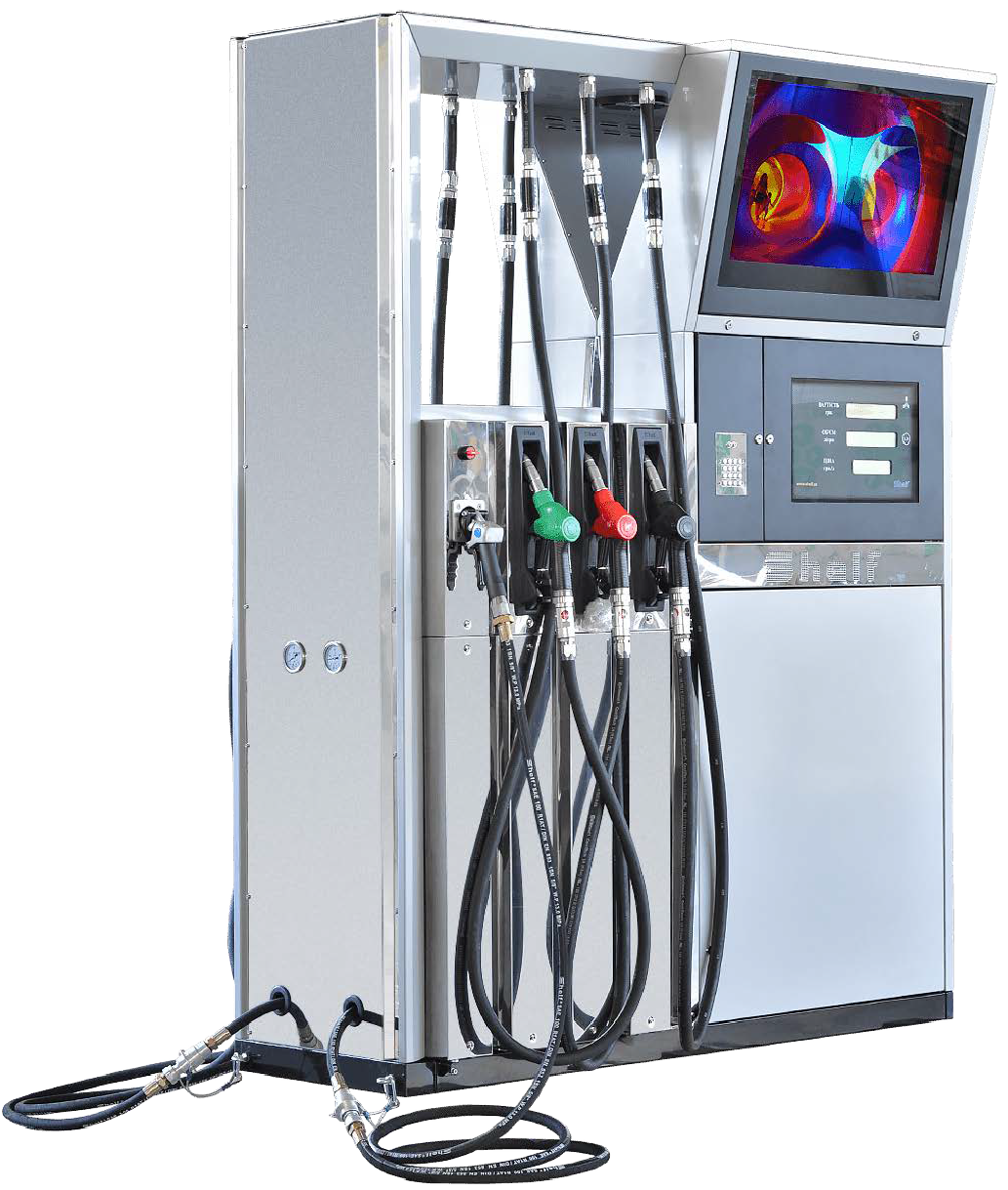

Model LPG-300-3-S #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose, high pressure hose (LPG)
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
- Display 32″
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 (gasoline, diesel), 50 ± 5 (LPG) |
| Error | ±0,5% (gasoline, diesel), ±1,0% (LPG) |
| Minimum dose of fuel delivery, l | 2/10 (gasoline, diesel), 5 (LPG) |
| Number of hoses | 6 + 2 |
| Electronic calibration | + |
| Number of pumps | 3 + LPG |
| Types of fuel | gasoline, diesel, LPG |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2350/900/1661 |
| Weight, kg | 705, 626 (without pumps) |

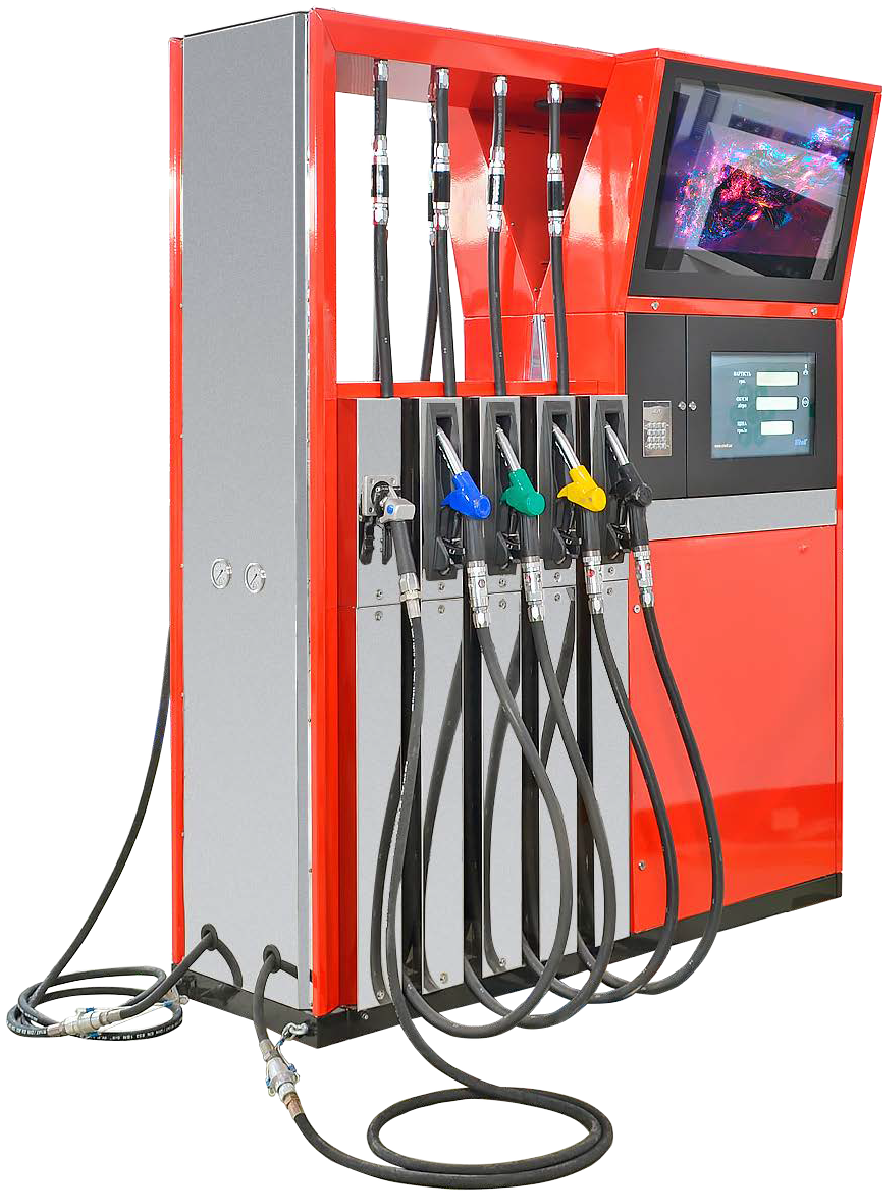

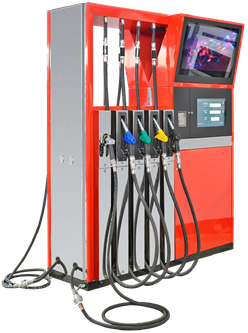

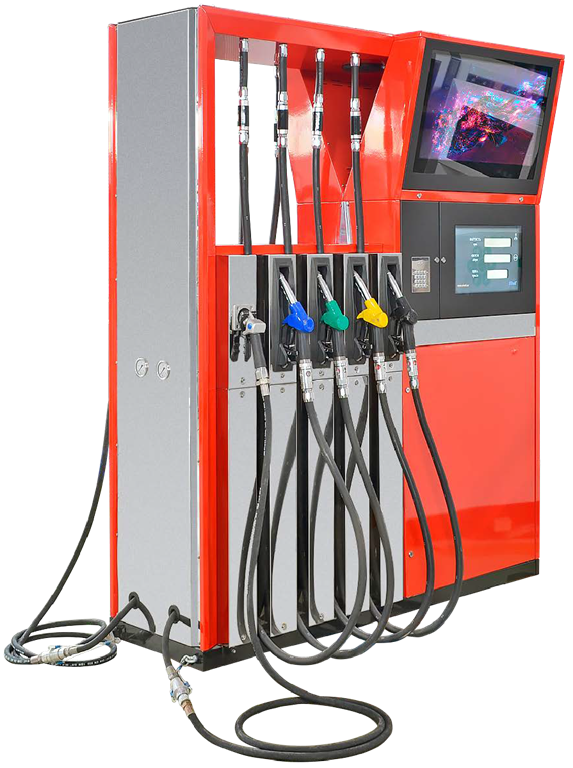

Model LPG-300-4-S #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose, high pressure hose (LPG)
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
- Display 32″
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 (gasoline, diesel), 50 ± 5 (LPG) |
| Error | ±0,5% (gasoline, diesel), ±1,0% (LPG) |
| Minimum dose of fuel delivery, l | 2/10 (gasoline, diesel), 5 (LPG) |
| Number of hoses | 8 + 2 |
| Electronic calibration | + |
| Number of pumps | 4 + LPG |
| Types of fuel | gasoline, diesel, LPG |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2350/900/1840 |
| Weight, kg | 655 |

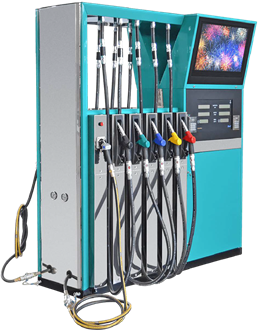

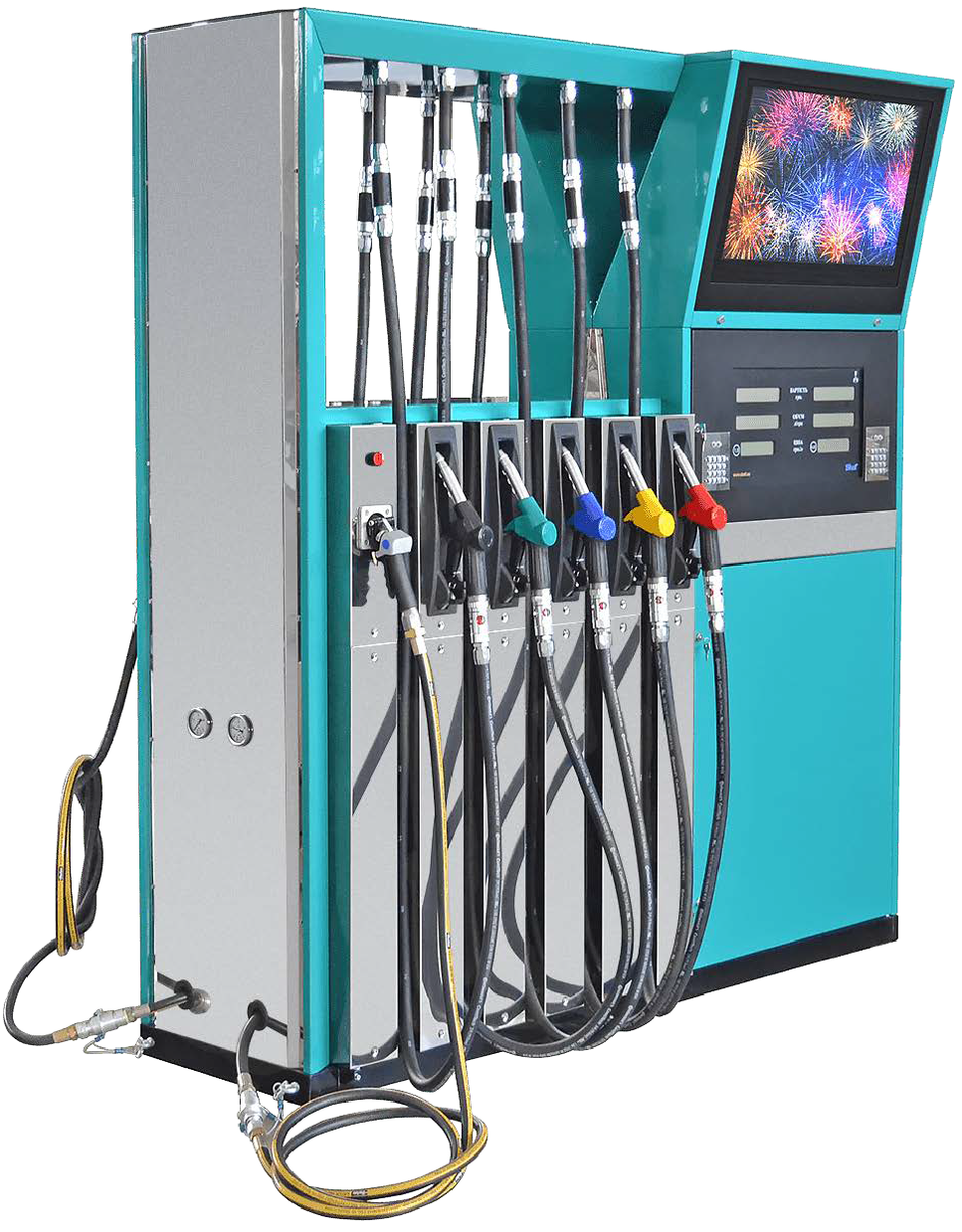

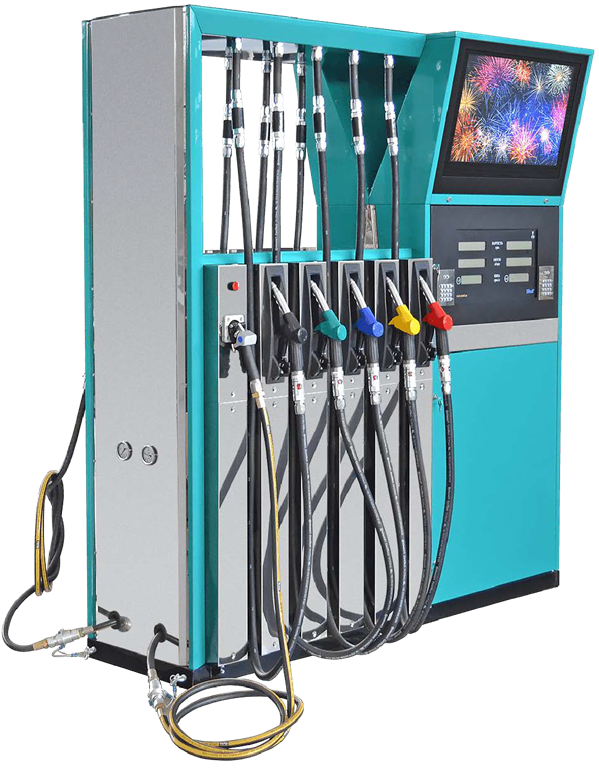

Model LPG-300-5-S #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose, high pressure hose (LPG)
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
- Display 32″
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 (gasoline, diesel), 50 ± 5 (LPG) |
| Error | ±0,5% (gasoline, diesel), ±1,0% (LPG) |
| Minimum dose of fuel delivery, l | 2/10 (gasoline, diesel), 5 (LPG) |
| Number of hoses | 10 + 2 |
| Electronic calibration | + |
| Number of pumps | 8 + LPG |
| Types of fuel | gasoline, diesel, LPG |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2350/900/2105 |
| Weight, kg | 741 |
