Gasoline Dispensers 100 Series for High Flow
High flow gasoline 100 series dispensers are used for gas stations where fast refueling is necessary. They are ideal for gas stations with a high flow of heavy vehicles. Available confgurations differ by capacity and number of hoses.

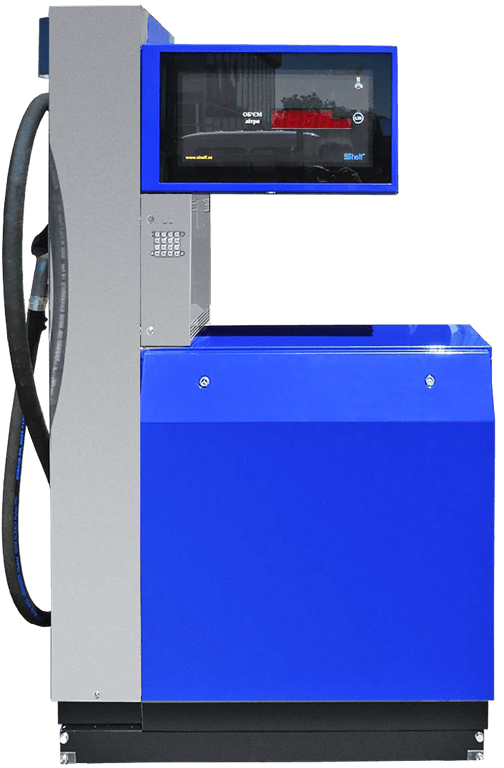

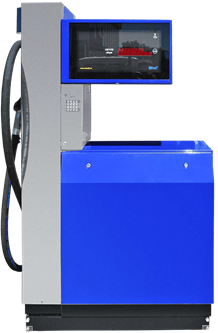

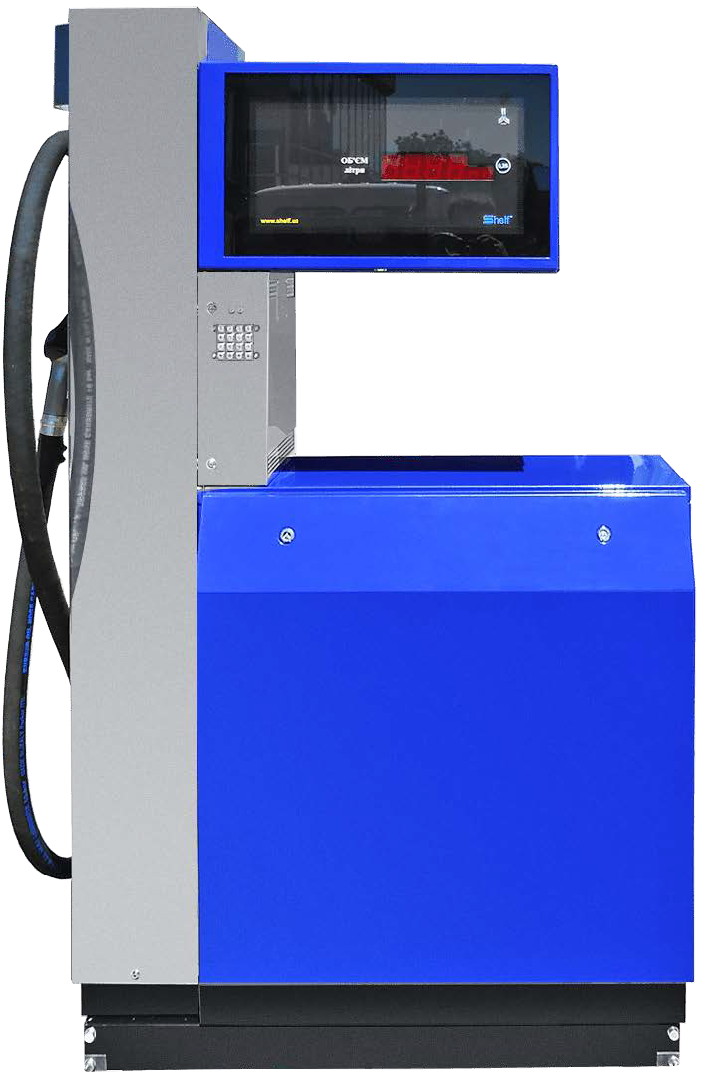

Model 100-1-140 #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
Possible additional equipment:
- LED 4+2 symbol
- Electric motor 220V
- OPW type nozzle
- Satellite
- Outdoor pump unit
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 140 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 10 |
| Number of hoses | 1 |
| Electronic calibration | + |
| Number of pumps | 2 |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2250/1300/600 |
| Dimensions with packaging H/W/D, mm | 2300/1300/760 |
| Weight, kg | 275, 210(without pump) |

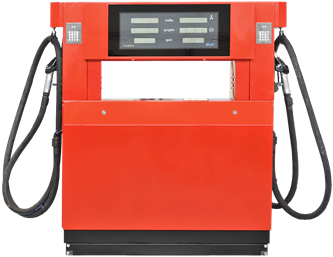

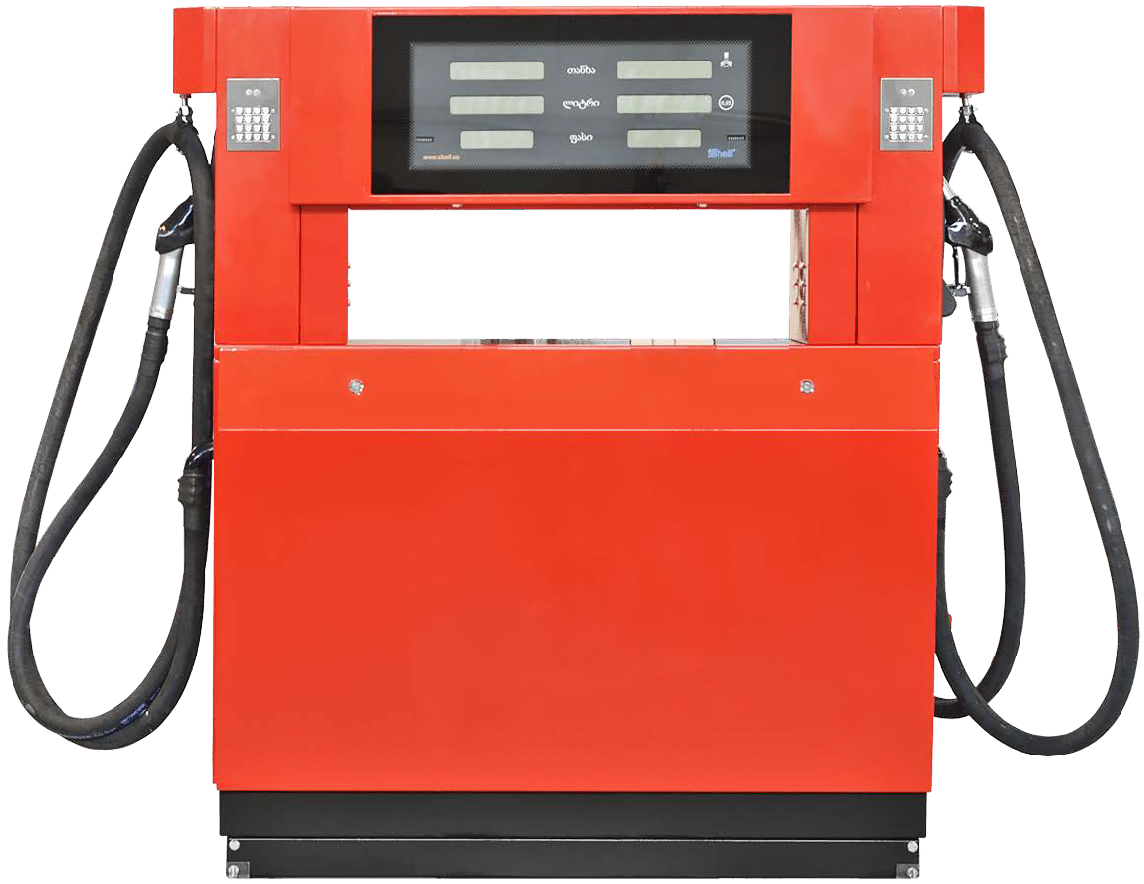

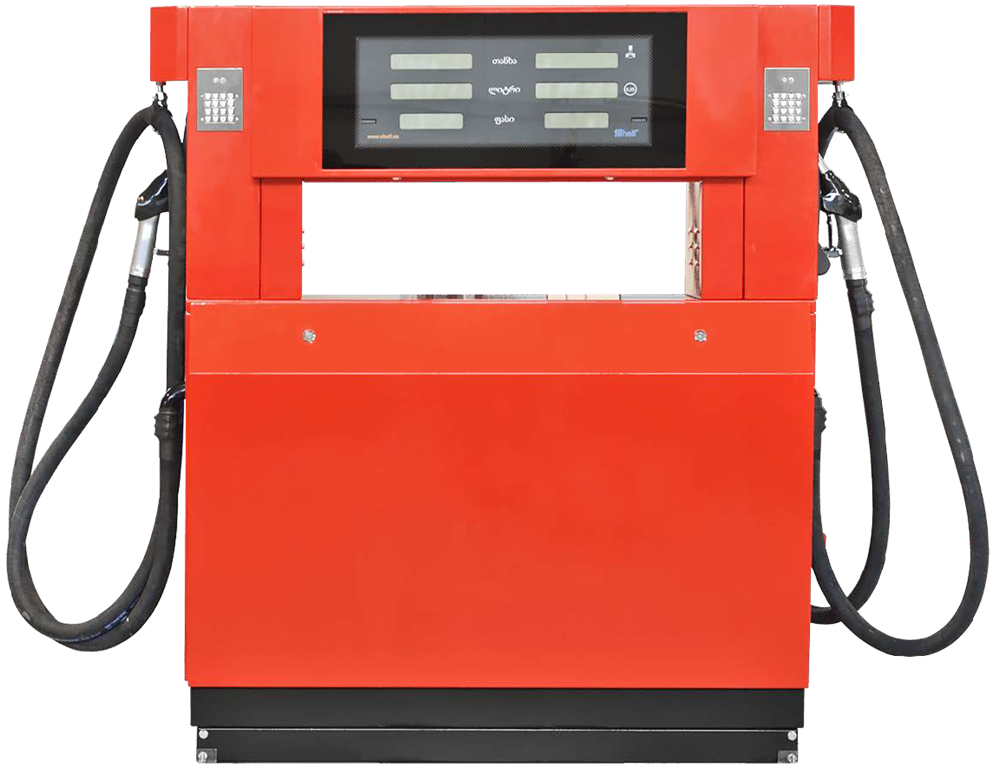

Model 100-2-140 #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
Possible additional equipment:
- LED 4+2 symbol
- Electric motor 220V
- OPW type nozzle
- Satellite
- Outdoor pump unit
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 140 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 10 |
| Number of hoses | 2 |
| Electronic calibration | + |
| Number of pumps | 4 |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 1550/1560/560 |
| Dimensions with packaging H/W/D, mm | 1600/1560/760 |
| Weight, kg | 400, 275(without pump) |

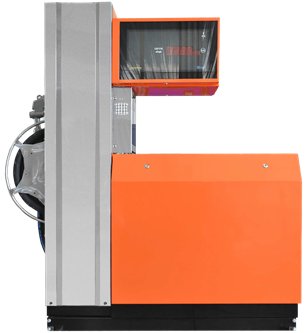

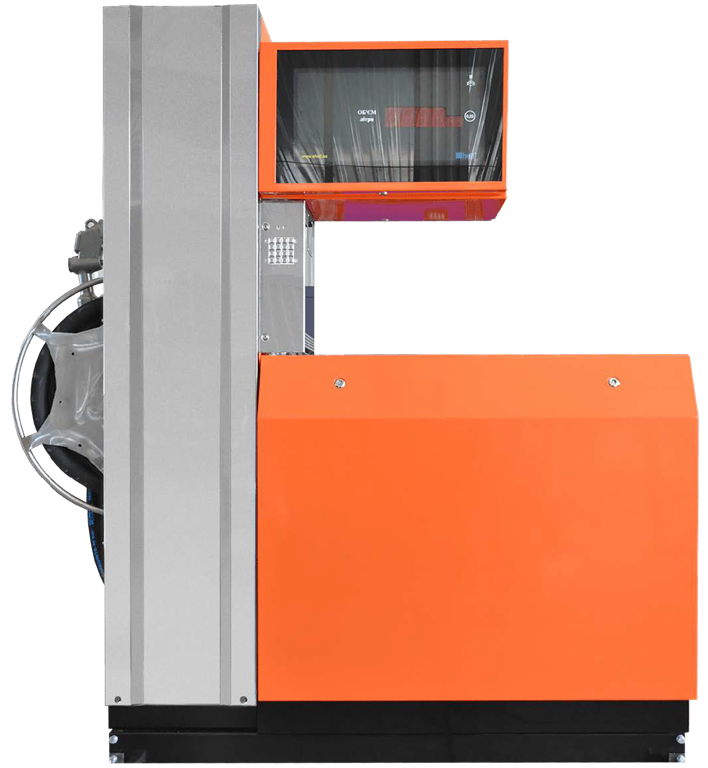

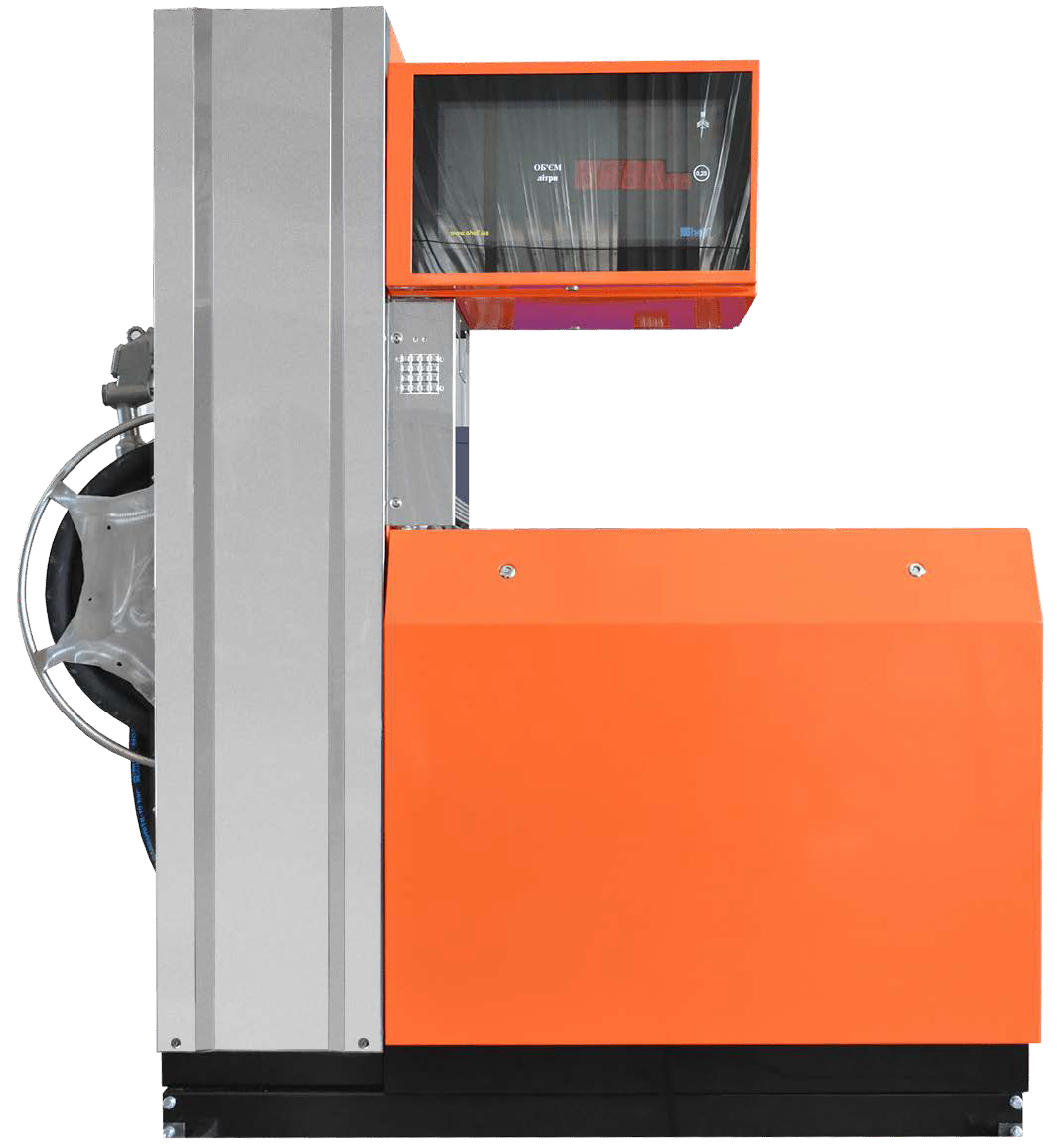

Model 100-1-300 #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
Possible additional equipment:
- LED 4+2 symbol
- OPW type nozzle
- Satellite
- Outdoor pump unit
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 300 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 10 |
| Number of hoses | 1 |
| Electronic calibration | + |
| Number of pumps | pump block |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | up to 16 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2050/1600/560 |
| Dimensions with packaging H/W/D, mm | 2100/2000/760 |
| Weight, kg | 420, 321(without pump) |

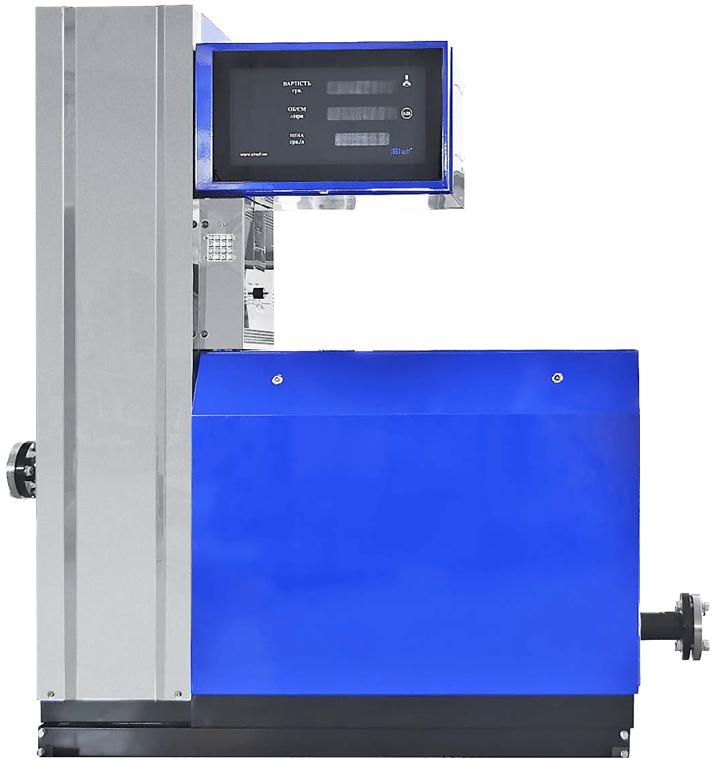

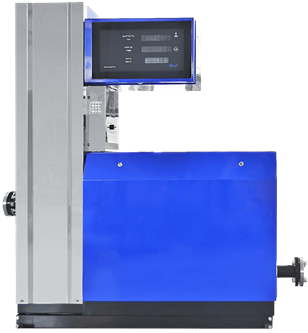

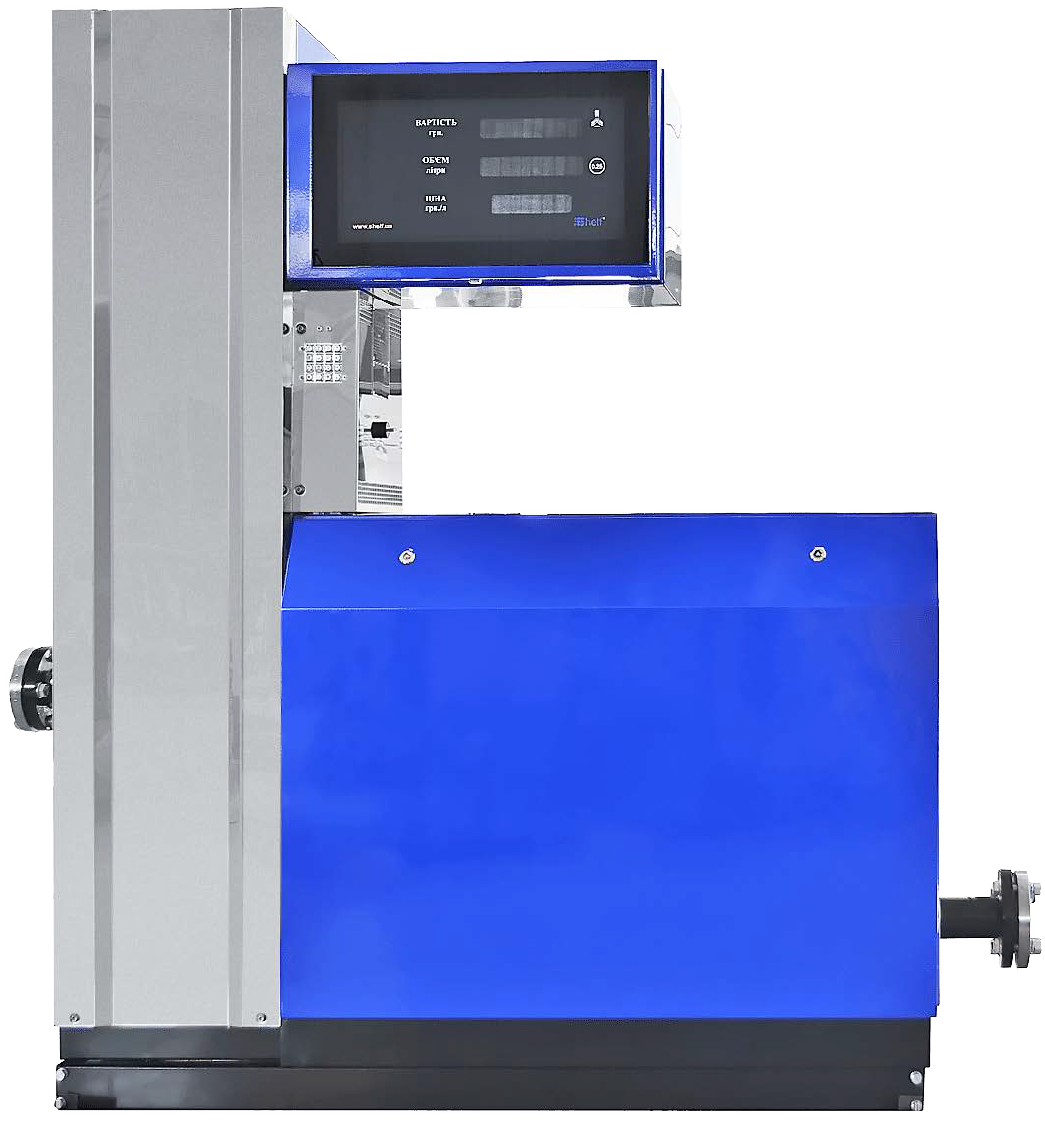

Model 100-1-700 #
Configuration
Standard equipment:
- Monoblock pump
- Electric motor 380V
- Flowmeter
- Backlit LCD
- Memory touch (Dallas)
Possible additional equipment:
- LED 4+2 symbol
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 700 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 10 |
| Number of hoses | 1 |
| Electronic calibration | + |
| Number of pumps | pump block |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | up to 16 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 2050/1600/560 |
| Dimensions with packaging H/W/D, mm | 2050/1600/760 |
| Weight, kg | 475 |
