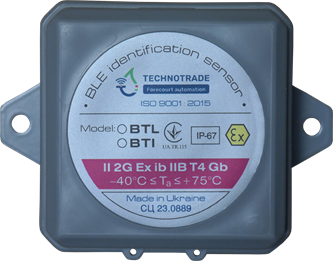

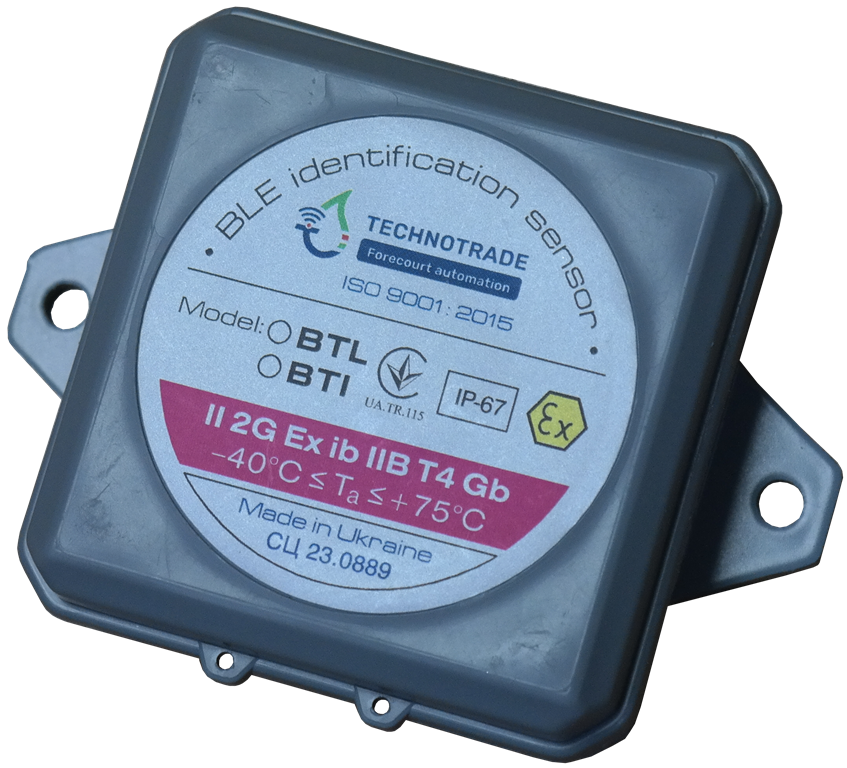

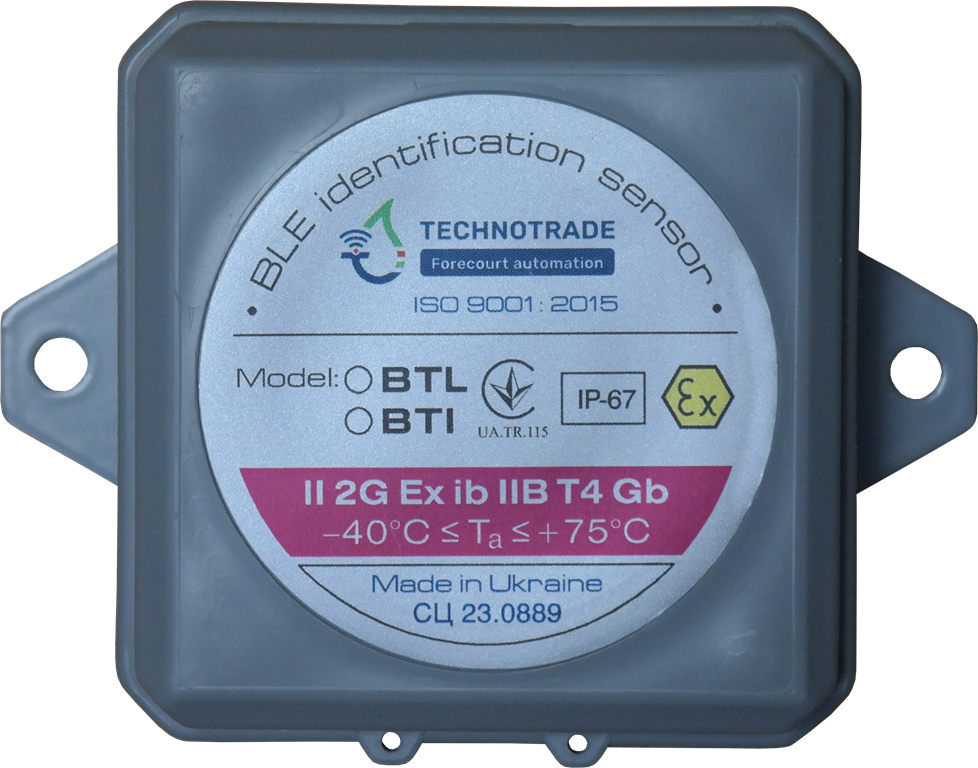

BTI BLE Tilt Angle Sensor
The BTI model wireless sensor is designed to measure and transmit data on angles of deviation relative to the initially fixed position in order to determine the facts of use of the device or equipment or object on which it is installed.
The angle sensor can also perform identification function - the sensor transmits a unique code (owner ID code) in order to identify the device or equipment on which it is installed.
To transmit information, the sensor uses the Bluetooth BLE radio interface while the sensor reader has the RS-485 output interface for communication with the external systems.
The sensors are widely applied on petrol stations and fuel delivery trucks to determine the facts of tank covering opening with a purpose to check possible thefts.
Technical characteristics #
| PARAMETER | VALUE |
|---|---|
| Angle measurement range | -90° … +90… |
| Measurement error | ±1° |
| Dispersion capacity | 0.02° |
| Data sending period | 0.1 … 5 sec (configurable) |
| Reaction time to change position | 0 … 20 sec (configurable) |
| Bit depth of the measurement results presentation code | 16 bits |
| Microcontroller temperature estimation range | -40°C … +85°C |
| Operating mode | continuous |
| Continuous battery operation time | 5 years |
| Internal log capacity | 1 … 12 days (configurable) |
| Operating frequency range | 2.401 … 2.481 GHz |
| Radiation power | 0 dBm (at 1 mW) |
| Maximum data reading range | 20 m |
| Supply voltage (lithium battery) | 3.6 V DC |
| Operating temperature range | –40°C … +75°C |
| Degree of protection against dust and moisture ingress | IP67 |
| Overall dimensions of the product | 75 x 56 x 23 mm |
