PTS SiteViewer console

Click on image to enlarge

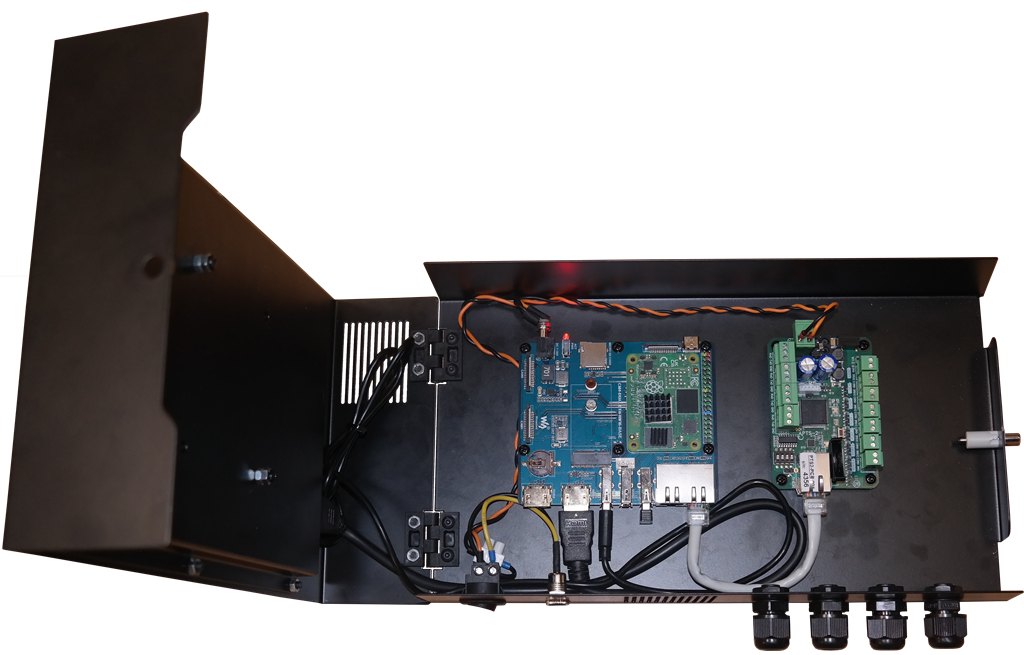

PTS SiteViewer console is a wall mounted console having inside the PTS-2 forecourt controller, computer mainboard running Linux or Windows operating system and a touchscreen display all inside the same metal casing with a door, allowing easy access and maintenance.

PTS SiteViewer console is designed to be used for 2 main purposes:

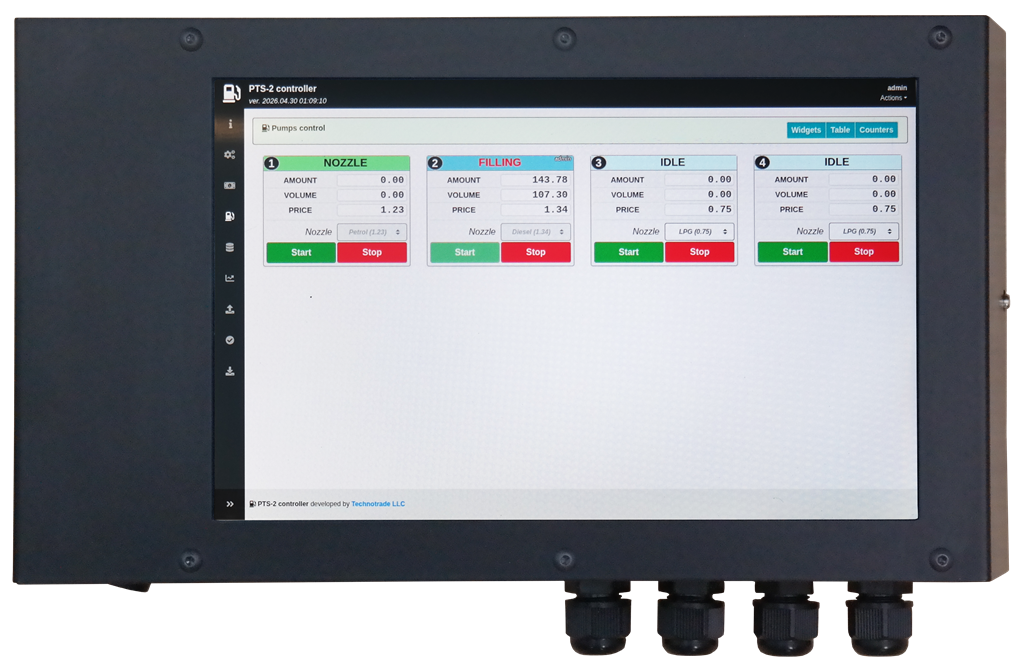

standalone operation: from the web interface of the PTS-2 controller easy and convenient controlling and monitoring over forecourt equipment, making configuration and generating reports
console for running third-party management software: computer board running Linux or Windows OS allows developers to place their own management software for petrol stations for any possible solutions:
- management over fuel dispensers
- monitoring over wet stock remains
- payment applications
- fiscal registration of pump sales and printout of receipts
- transmission of reports to remote server
- any others

Price: 1500 USD

Technical characteristics #

PARAMETER	VALUE
Display	IPS display 10.1 ″ with capacitive touchscreen
Power supply voltage	12 V DC
Current consumption	3 A max
Temperature range	0°C ÷ +60°C
Protection class	IP54
Weight	up to 2 kg
Overall dimensions	310 x 175 x 65 mm
