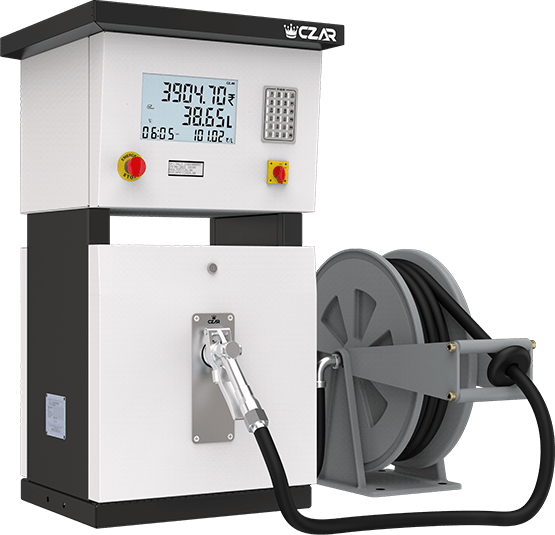

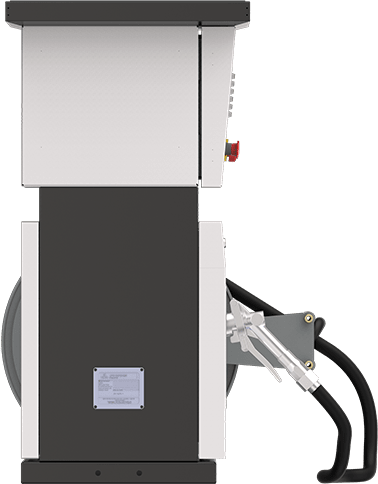

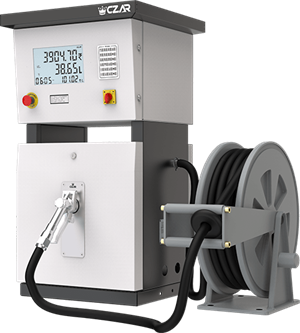

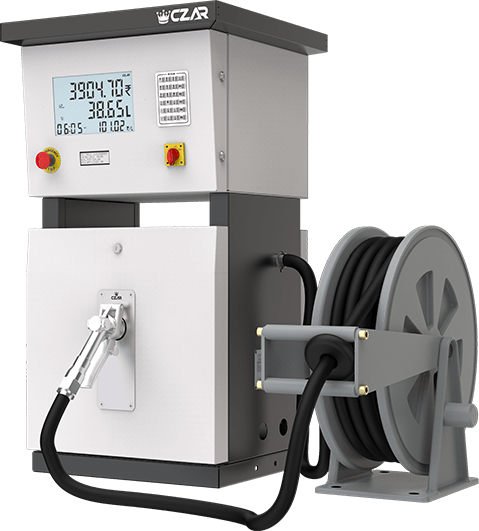

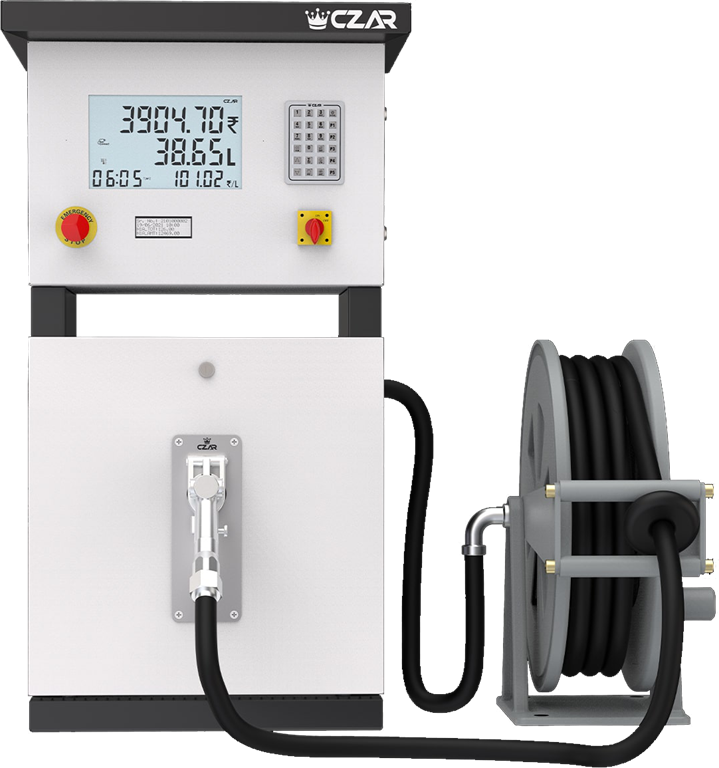

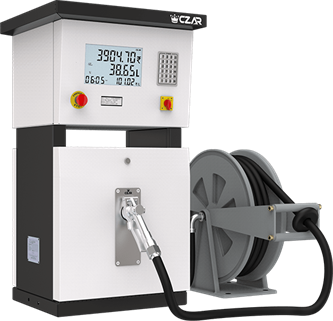

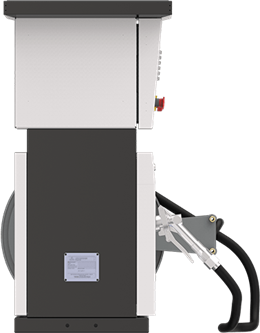

LPG Bowser Dispenser CZAR CZL-TS1111
Bowser dispenser designed for dispensing LPG with exceptional performance:
- robustness
- rich functionality
- long lifetime
- high reliability easy maintenance
Enhanced Electronics Design:
- Printer: Integrated programmable Thermal Printer
- RFID: RFID based fuelling authorization
- Informative Display: 20X4 Graphical display
- Chrome plated keypad: 6x4 Industrial Grade Chromed die-cast zinc
- Embedded System: with Data Storage, Wi-fi communication and much more
- Emergency Switch: Dedicated Emergency Switch on each side
- AES-256 Encrypted: tamperproof design
Enhanced Mechanical Design:
- Aesthetic look along with full size Canopy 15° angled Static Breakaway Installation for effective performance
- First in class, Duel Tone Fuel dispenser
- High performance maintenance free PD Flow meter
- 6 degrees Tilted Display View for better customer visibility
- Projected nozzle boot for easy operation and reduce nozzle marks on the unit
- Maintenance free Hose management system
Technical Specifications #
Click on image to enlarge
Electronics Features
- AES-256 & family integrity between all cards
- Programable Predictive Maintenance Alerts
- Unlimited transaction data
- On board temperature Sensor
- Logs for unlimited transaction data
- ATC functionality
- HTN or PMVA displays
- 20x4 informative LCD
- 24VDC dual flow Solenoid Valve
- Communication protocol CZAR 2 Wire & IFSF
Mechanical Features
- Czar indigenously designed 4-Piston Flow meter
- High performance
- Magnetically coupled
- Maintenance free
- LPG nozzle with Brass and aluminium sleeve
- High surface stainless steel reusable filter
Performance
| PARAMETER | VALUE |
|---|---|
| Operating Temperature Range | -25°C to 55°C |
| Design Pressure | 25 bar |
| Delivery Speed | 4 – 40 LPM |
| Minimal measured quantity | 2 L |
| Accuracy range | ± 0.5 % with MMQ of 2L (Class 1) |
| Certified | ATEX, OIML, PESO, LM-India |
