LPG Series Dispensers

LPG series dispensers are designed for flling liquefed propane-butane (LPG) at gas stations. LPG dispensers are one-sided and two-sided, from 1 to 2 hoses.

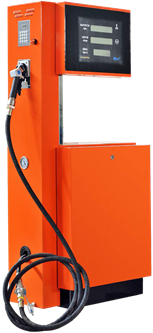

Model LPG-1 #

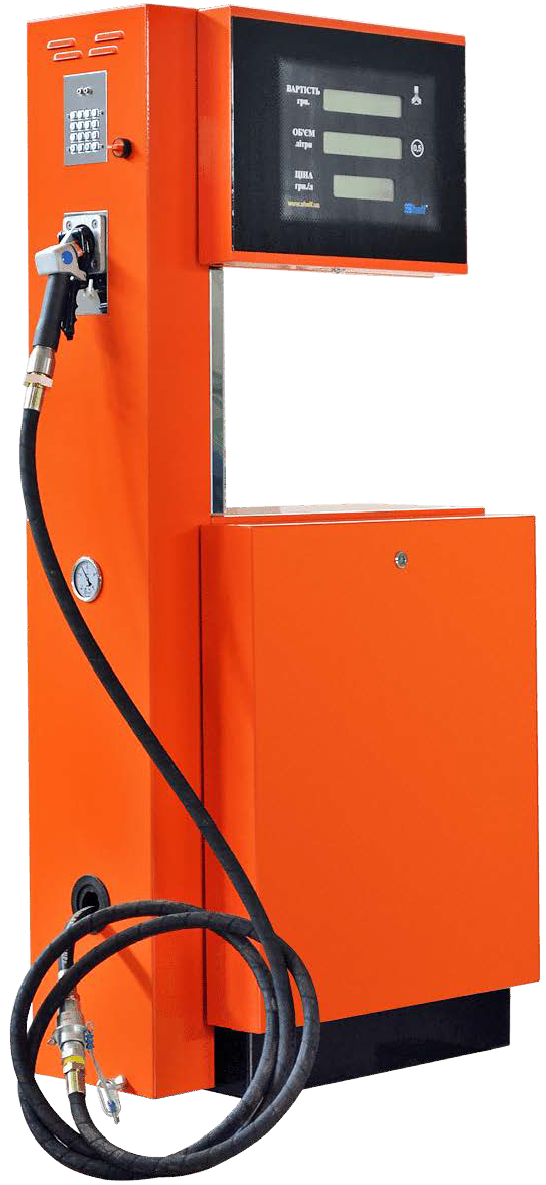

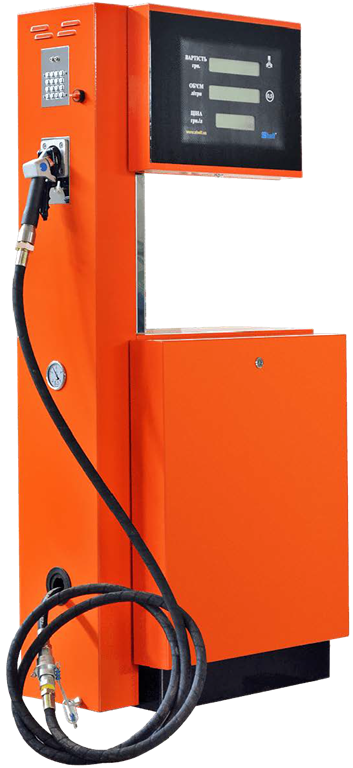

LPG dispenser LPG-1
Click on image to enlarge

Configuration

Standard equipment:

  • Separator
  • Flowmeter
  • LPG nozzle
  • High pressure hose
  • Backlit LCD
  • Memory touch (Dallas)
  • LPG breakaway

Possible additional equipment:

  • LED display

Specification

PARAMETER VALUE
Flow rates, l/min 50
Error ±0,5%
Minimum dose of fuel delivery, l 2
Number of hoses 1
Electronic calibration +
Types of fuel LPG
Temperature range -40/+55 °С
Power supply 230/400V ± 10%, 50 Hz ± 2 Hz
Access control Memory touch (Dallas)
Hose length, m 4
Display LCD or LED
Capacity of the counting device 9999,99 l
Total counter electronic 12-bit
Dimensions H/W/D, mm 1800/600/900
Weight, kg 174

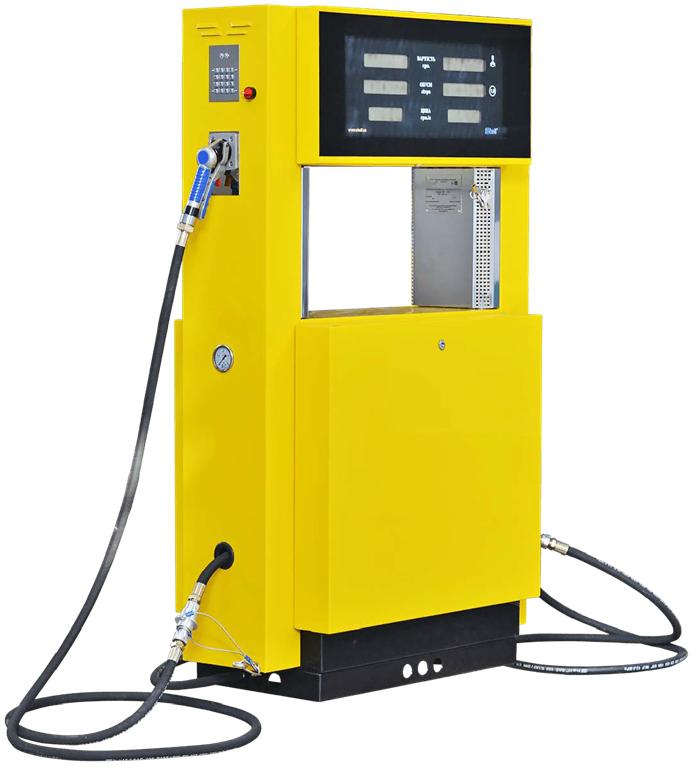

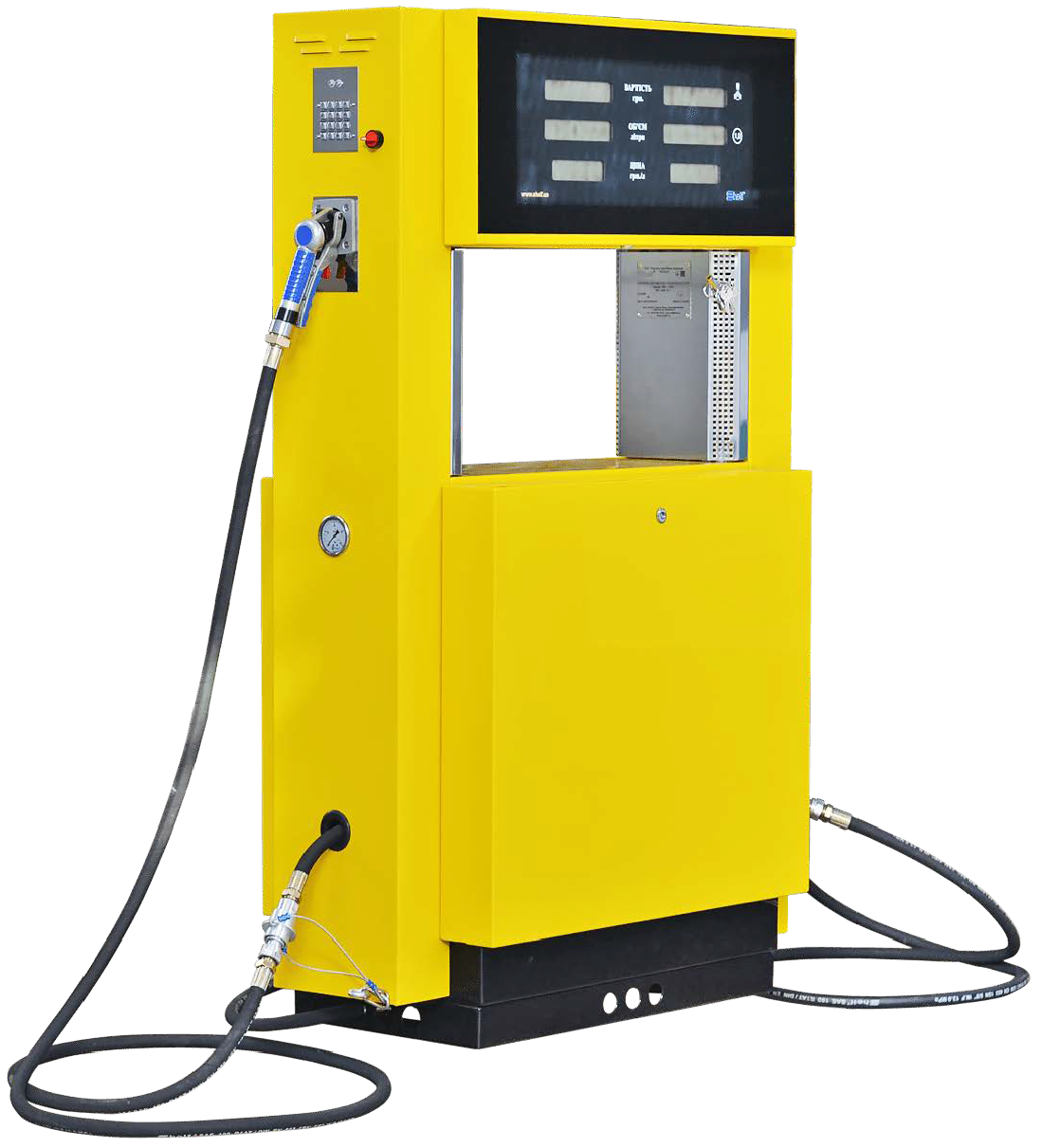

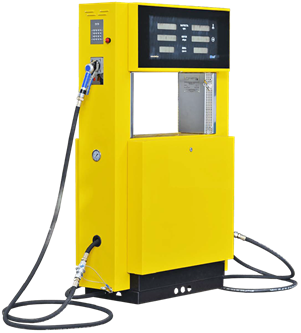

Model LPG-2 #

LPG dispenser LPG-2
Click on image to enlarge

Configuration

Standard equipment:

  • Separator
  • Flowmeter
  • LPG nozzle
  • High pressure hose
  • Backlit LCD
  • Memory touch (Dallas)
  • LPG breakaway

Possible additional equipment:

  • LED display

Specification

PARAMETER VALUE
Flow rates, l/min 50
Error ±0,5%
Minimum dose of fuel delivery, l 2
Number of hoses 2
Electronic calibration +
Types of fuel LPG
Temperature range -40/+55 °С
Power supply 230/400V ± 10%, 50 Hz ± 2 Hz
Access control Memory touch (Dallas)
Hose length, m 4
Display LCD or LED
Capacity of the counting device 9999,99 l
Total counter electronic 12-bit
Dimensions H/W/D, mm 1800/600/1300
Weight, kg 265

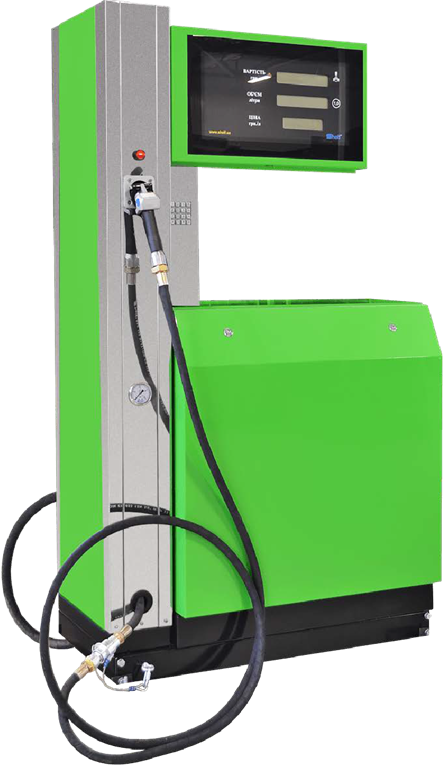

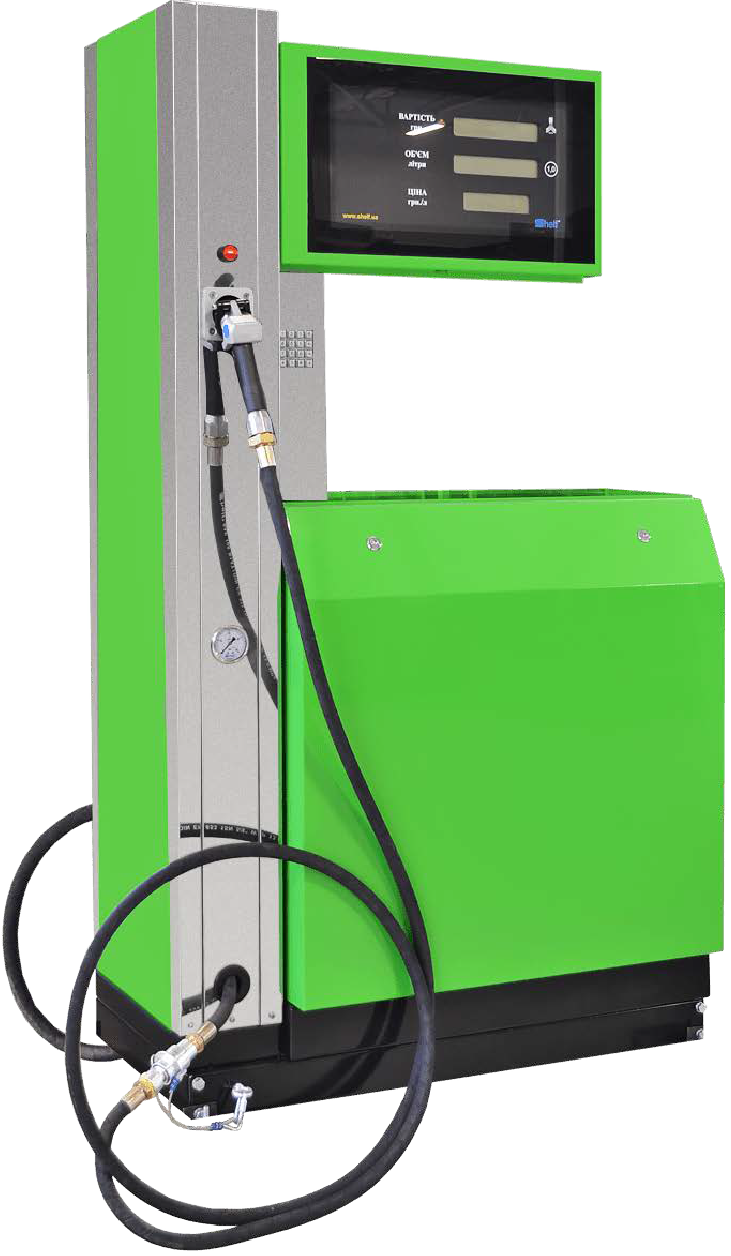

Model LPG-MK #

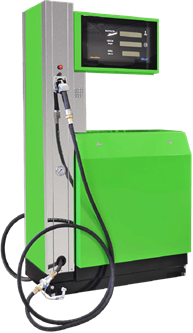

LPG dispenser LPG-MK
Click on image to enlarge

Configuration

Standard equipment:

  • Separator
  • Flowmeter
  • LPG nozzle
  • High pressure hose
  • Backlit LCD
  • Memory touch (Dallas)
  • LPG breakaway

Possible additional equipment:

  • LED display

Specification

PARAMETER VALUE
Flow rates, l/min 50
Error ±0,5%
Minimum dose of fuel delivery, l 2
Number of hoses 2
Electronic calibration +
Types of fuel LPG
Temperature range -40/+55 °С
Power supply 230/400V ± 10%, 50 Hz ± 2 Hz
Access control Memory touch (Dallas)
Hose length, m 4
Display LCD or LED
Capacity of the counting device 9999,99 l
Total counter electronic 12-bit
Dimensions H/W/D, mm 2000/570/1100
Weight, kg 250

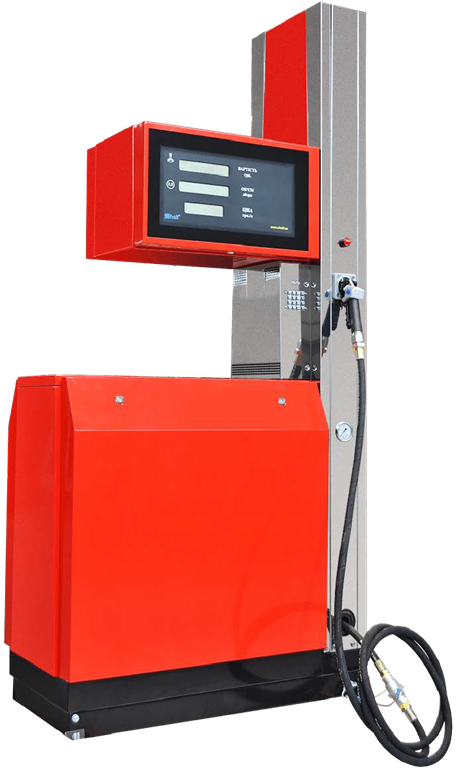

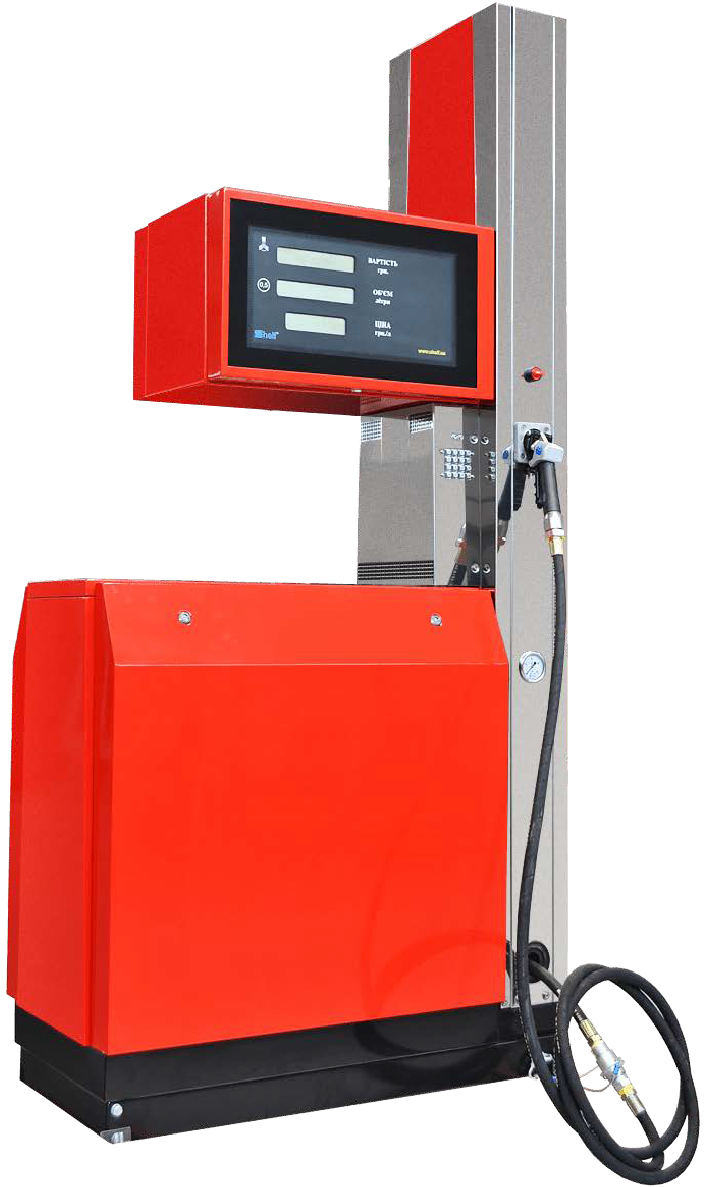

Model LPG-M #

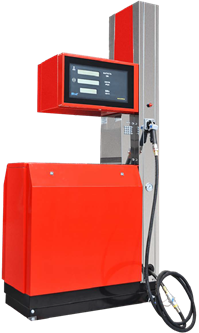

LPG dispenser LPG-M
Click on image to enlarge

Configuration

Standard equipment:

  • Separator
  • Flowmeter
  • LPG nozzle
  • High pressure hose
  • Backlit LCD
  • Memory touch (Dallas)
  • LPG breakaway

Possible additional equipment:

  • LED display

Specification

PARAMETER VALUE
Flow rates, l/min 50
Error ±0,5%
Minimum dose of fuel delivery, l 2
Number of hoses 2
Electronic calibration +
Types of fuel LPG
Temperature range -40/+55 °С
Power supply 230/400V ± 10%, 50 Hz ± 2 Hz
Access control Memory touch (Dallas)
Hose length, m 4
Display LCD or LED
Capacity of the counting device 9999,99 l
Total counter electronic 12-bit
Dimensions H/W/D, mm 2285/570/1100
Weight, kg 250
