Gasoline Dispensers 200-R Series
Gasoline 200-R series dispensers are produced in a compact modular housing with the possibility of dispensing from one to fve types of fuel. Fuel dispensers can be produced of both in pressure and suction types. Standard confguration includes hose return systems, breakaway couplings, hydraulic system liquid crystal display and electronic unit. Dispenser can be equipped with LED or multimedia display, remote additional faucet (satellite), external pump unit.

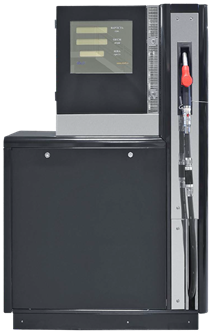

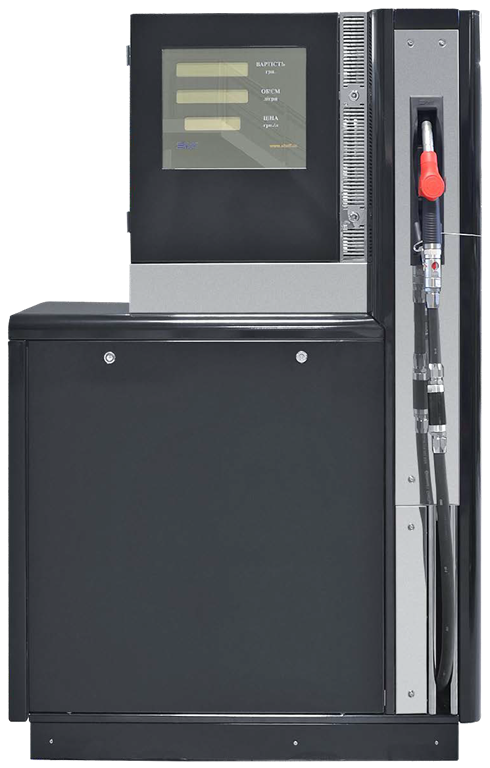

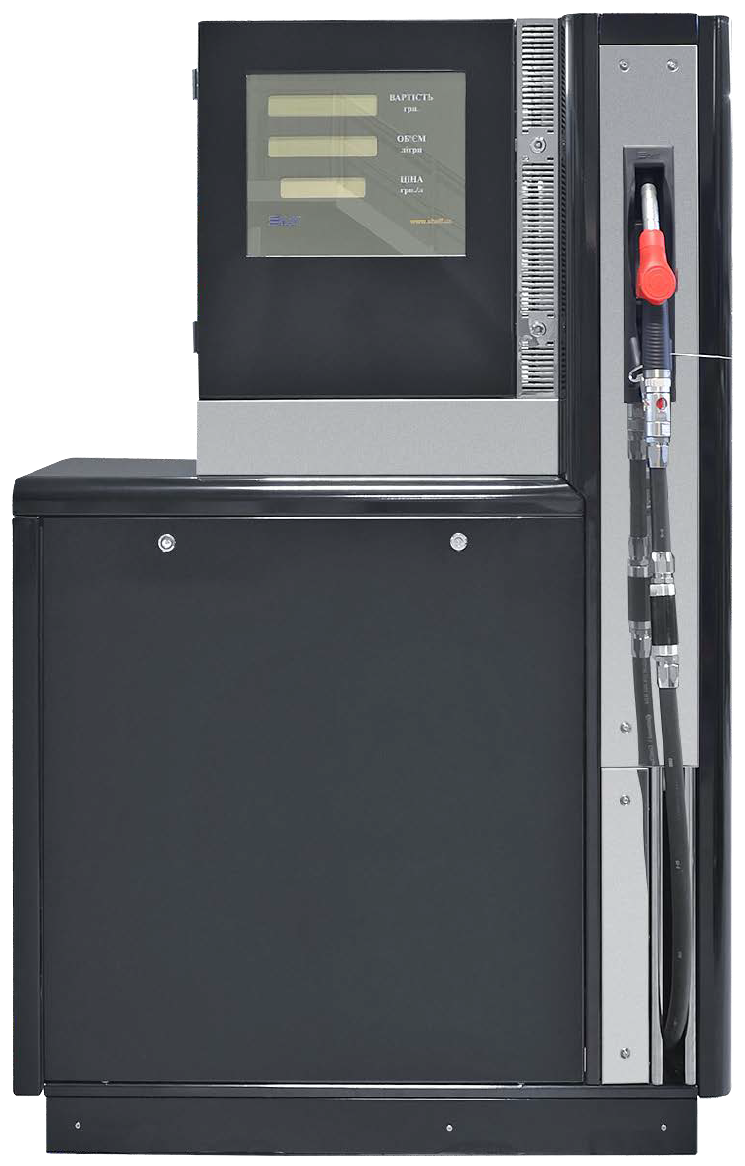

Model 200-1-R #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- Outdoor pump unit
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 2/10 |
| Number of hoses | 2 |
| Electronic calibration | + |
| Number of pumps | 1 |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 1800/1200/570 |
| Dimensions with packaging H/W/D, mm | 1900/1300/760 |

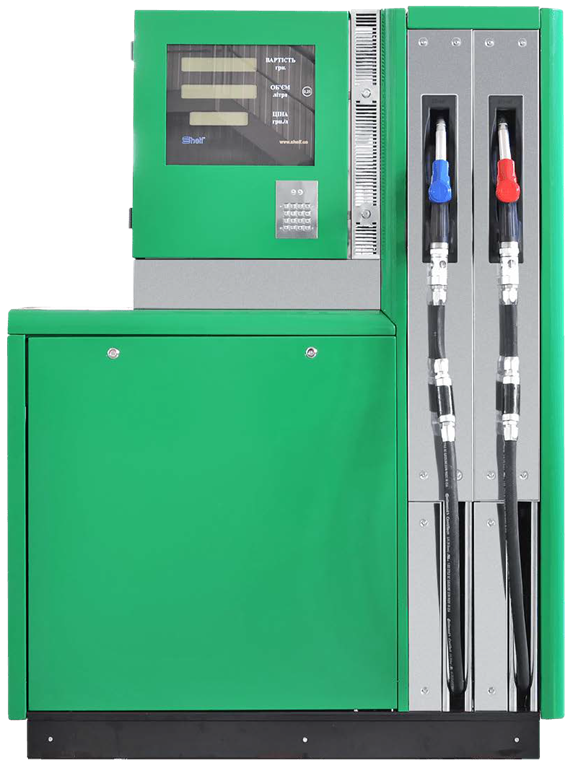

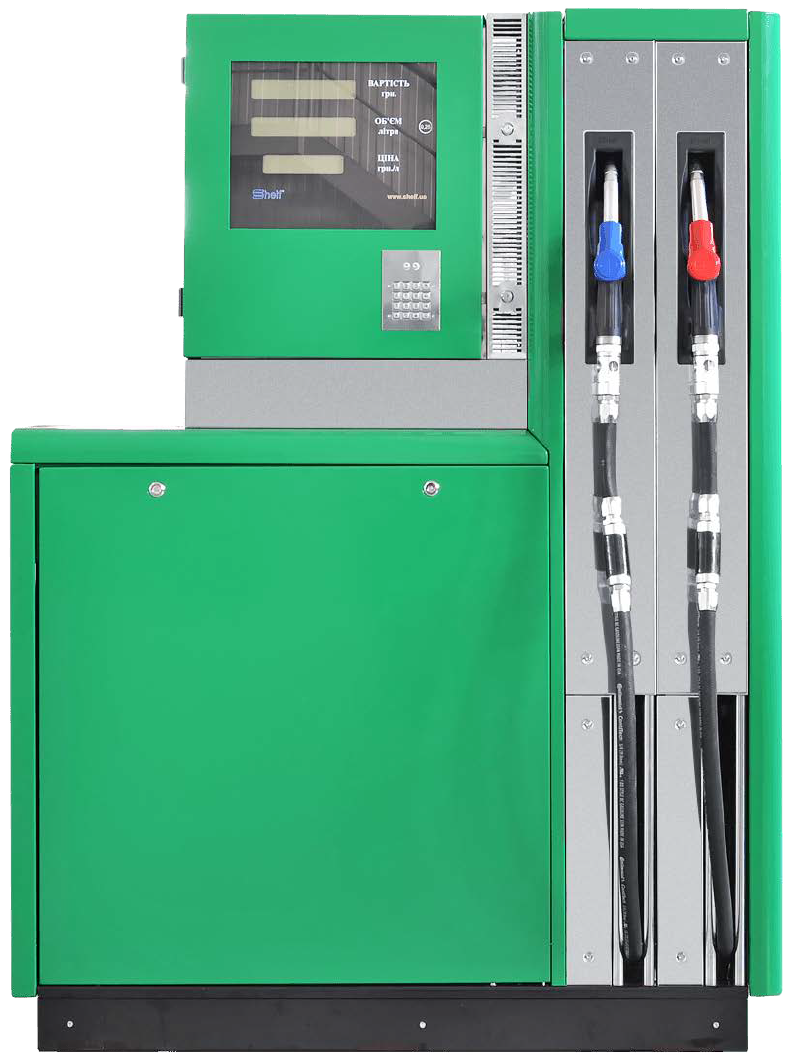

Model 200-2-R #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- Outdoor pump unit
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 2/10 |
| Number of hoses | 4 |
| Electronic calibration | + |
| Number of pumps | 2 |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 1800/1350/570 |
| Dimensions with packaging H/W/D, mm | 1900/1450/760 |

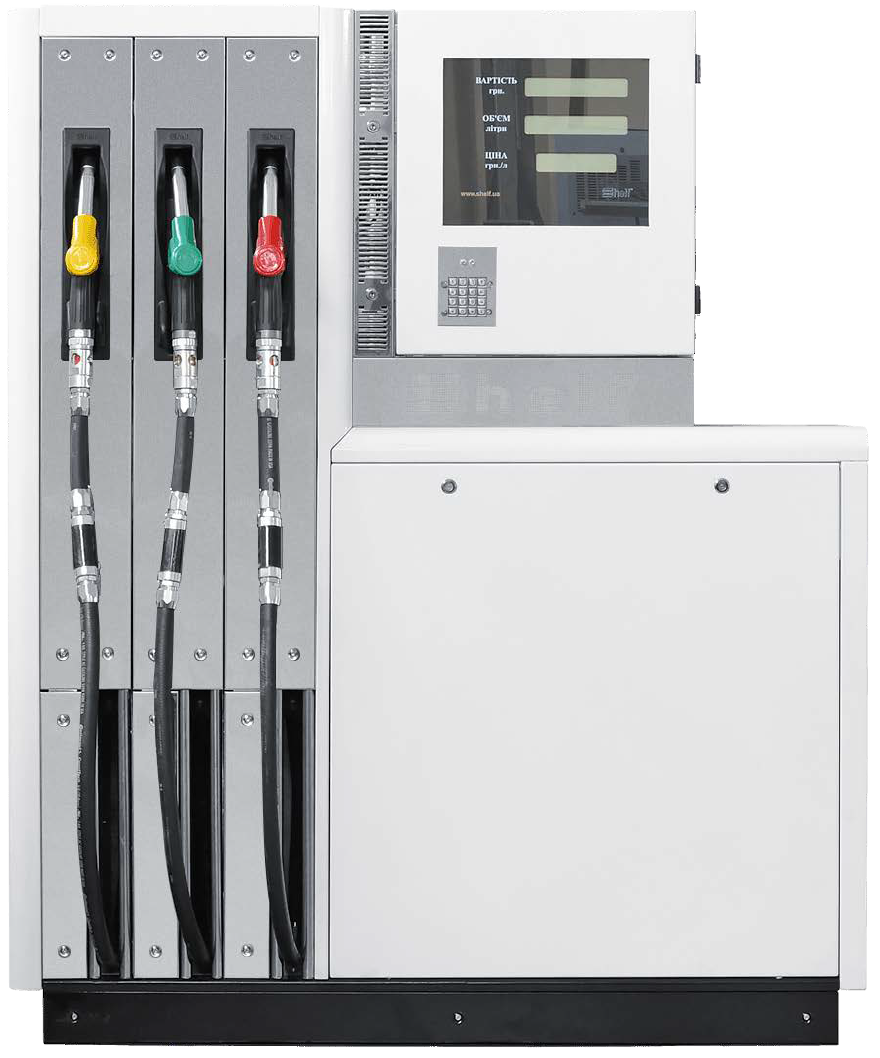

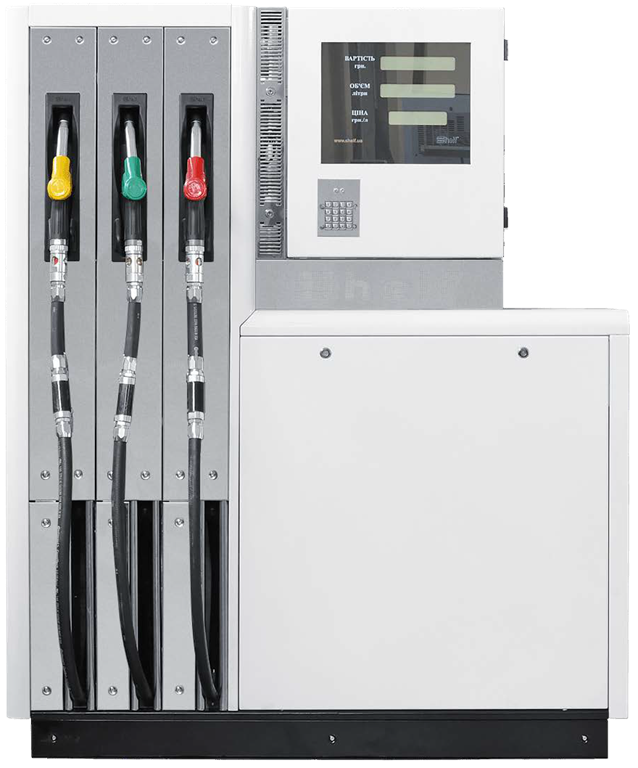

Model 200-3-R #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- Outdoor pump unit
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 2/10 |
| Number of hoses | 6 |
| Electronic calibration | + |
| Number of pumps | 3 |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 1800/1500/570 |
| Dimensions with packaging H/W/D, mm | 1900/1600/760 |
| Weight, kg | 497 |

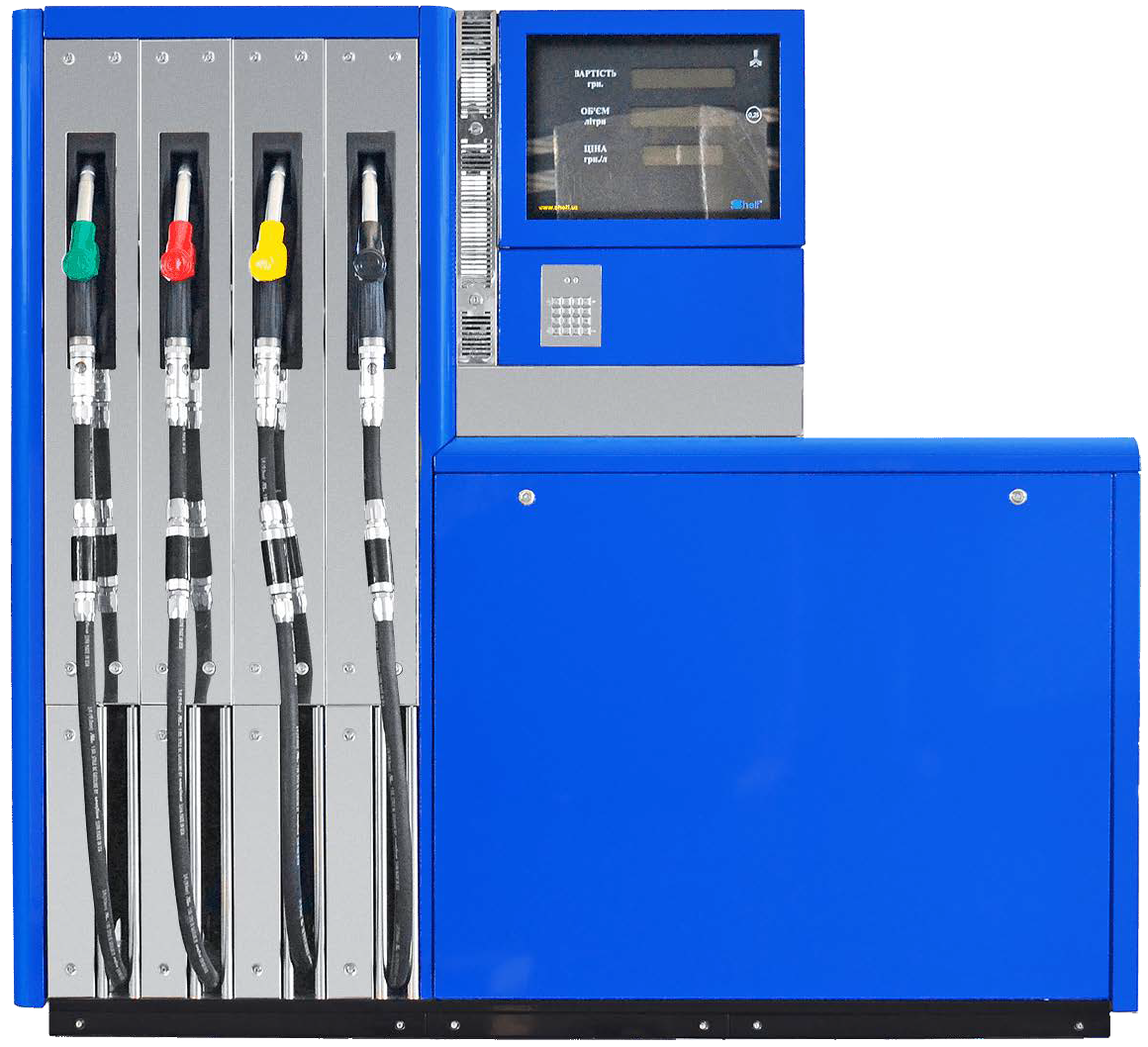

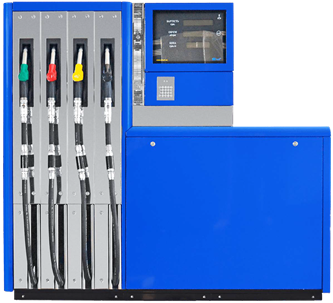

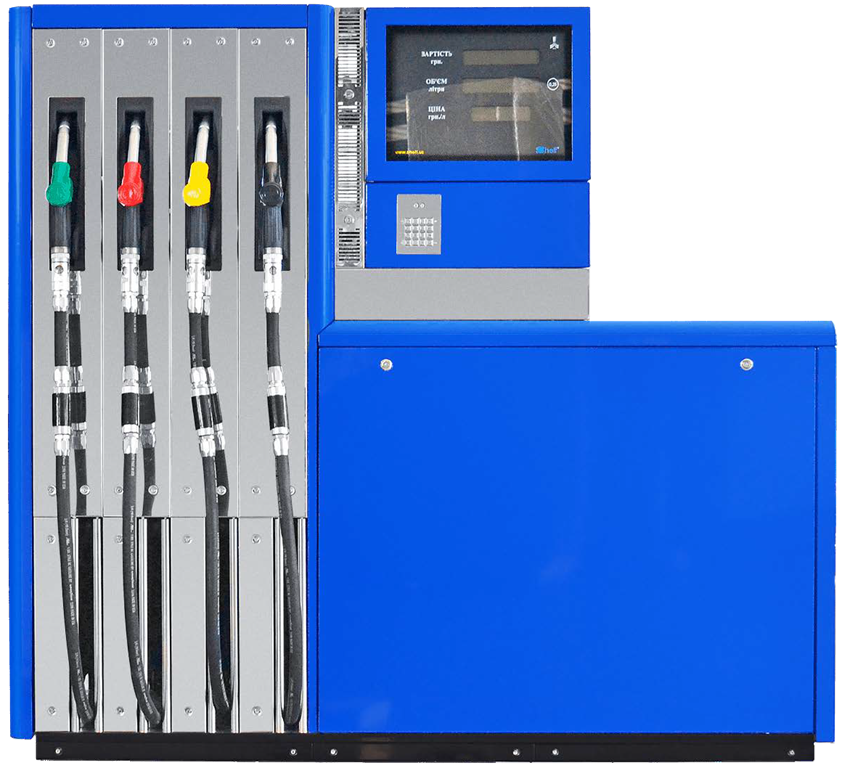

Model 200-4-R #
Configuration
Standard equipment:
- Monoblock pump
- Silphone
- Electric motor 380V
- Flowmeter
- ZVA type nozzle
- Continental hose
- Backlit LCD
- Memory touch (Dallas)
- Breakaway
Possible additional equipment:
- LED block
- Electric motor 220V
- OPW type nozzle
- Satellite
- Outdoor pump unit
- High productivity channel 90 l/min
- Vapor recovery system
Specification
| PARAMETER | VALUE |
|---|---|
| Flow rates, l/min | 50/90 |
| Error | ±0,5% |
| Minimum dose of fuel delivery, l | 2/10 |
| Number of hoses | 8 |
| Electronic calibration | + |
| Number of pumps | 4 |
| Types of fuel | gasoline, diesel and biodiesel |
| Temperature range | -25/+55 °С |
| Power supply | 230/400V ± 10%, 50 Hz ± 2 Hz |
| Access control | Memory touch (Dallas) |
| Hose length, m | 4 |
| Display | LCD or LED |
| Capacity of the counting device | 9999,99 l |
| Total counter | electronic 12-bit |
| Dimensions H/W/D, mm | 1800/2000/570 |
| Dimensions with packaging H/W/D, mm | 1900/2100/760 |
| Weight, kg | 596 |
