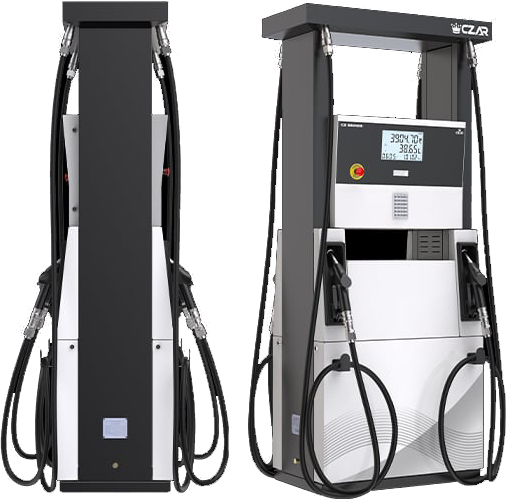

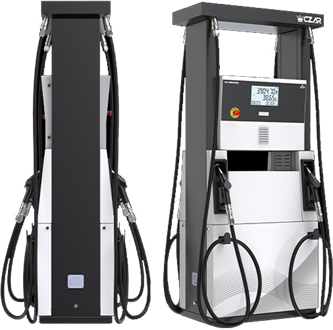

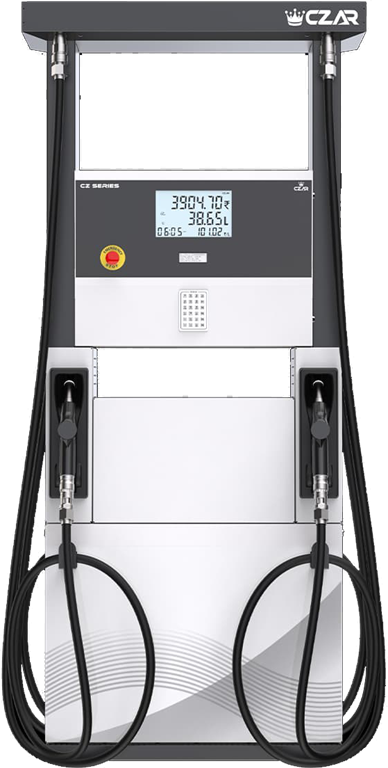

Fuel Dispenser CZAR CZF-TS2442
Dispenser designed for dispensing light petroleum products with exceptional performance:
- robustness
- rich functionality
- long lifetime
- high reliability easy maintenance
Enhanced Electronics Design:
- Printer: Integrated programmable Thermal Printer
- RFID: RFID based fuelling authorization
- Informative Display: 20X4 Graphical display
- Separate Electronics: for every fuelling position means no breakdown of complete dispenser any more
- Chrome plated keypad: 6x4 Industrial Grade Chromed die-cast zinc
- Embedded System: with Data Storage, Wi-fi communication and much more
- Emergency Switch: Dedicated Emergency Switch on each side
- AES-256 Encrypted: tamperproof design
Enhanced Mechanical Design:
- Aesthetic look along with full size Canopy 15° angled Static Breakaway Installation for effective performance
- First in class, Duel Tone Fuel dispenser
- High performance maintenance free PD Flow meter
- 6 degrees Tilted Display View for better customer visibility
- Projected nozzle boot for easy operation and reduce nozzle marks on the unit
- Maintenance free Hose management system
Technical Specifications #
Click on image to enlarge
Operational Features
- Programable Predictive Maintenance Alerts.
- Display with power back up of 15 minutes.
- Unlimited transaction data.
- On board temperature Sensor for alert of abnormal rise in temperature for safety.
- Dispenser’s ERA is provided with intelligence ATC functionality as an optional to deliver the fuel accurately conforms to ASTM.
- Electronic totalizer available along with optional Electro-mechanical totalizer.(O).
- Industrial Grade Electronic components deliver world class performance for years to cherish without failures.
- Ultra-durable Solid-state relay vis-à-vis mechanical relay.
- Integrated electronics section, conduit cable routing for better serviceability.
- HTN or PMVA displays to show
- 7 Digits, Amount.
- 6-digits, Volume.
- 5-digits Unit rate.
- 4-digits to show Flowrate/Clock/Fuel Temperature.
- 20x4 informative LCD to show fill progress, Totalizer Amount/Volume, Electronic Temp, etc.
- 24VDC dual flow Solenoid Valve for better reliability.
Communication Interfaces
- CZAR proprietary up to AES-256 RS-485 communication protocol.
- IFSF Protocol.
- Fuel-Connect® automation interface.
- Other Automation compatible.
Security Features
- Protected Time Stamped event log for Errors, Alerts and parameter changes.
- Up to 64GB Encrypted Industrial grade Memory card with family integrity for all life-long transactions & logs.
- Dynamic Passwords for Multilevel users.
Mechanical Features
- Flow Meters: designed 2-Piston high performance, maintenance free Positive Differential Flow meter with < 2ml per Pulse - first ever in the world along with Encrypted communication with calculator.
