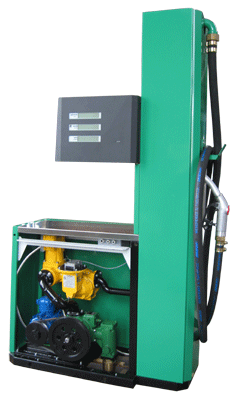

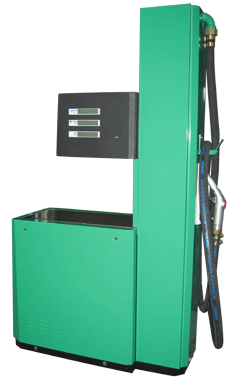

TZK auto-filling complexes

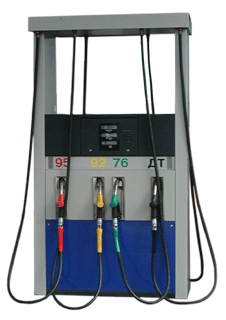

Family of TZK auto-filling complexes

auto-filling complex

Item	Parameters and technical characteristics of fuel dispenser	NOVA Slavutich
1	Fuel type	Petrol, diesel fuel, kerosene
2	Limits of volume measurement basic accuracy, %	0,25
3	Volume measurement resolution, ml	10
4	Flow rate, l/min	45 / 80 / 140
5	Number of fuel types	1 ÷ 4
6	Number of nozzles, pcs	1 ÷ 8
7	Number of simultaneously served autos	1 or 2
8	Operating temperature range, °С	- 40 ÷ +60
9	AC network power supply, V	380 (+ 10 / - 15)% 220 (+ 10 / - 15)%
10	Frequency, Hz	50 ± 1
11	Pump drive nominal power, kW	1,0 / 3,0
12	Maximum suction height, m	5,5
13	Suction height at 50 m-distance from the tank, m	5,0
14	Suction height at 70 m-distance from the tank, m	3,5
15	Electronic adjustment of fuel dispenser precision	Available
16	Number of digits: of 1-liter price of total amount of dispensed volume (l)	4 digits 6 digits 6 digits
17	Saving of characteristics at planned and unplanned power interruption	Available
