Premium-type fuel dispensers

Family of premium-type fuel dispensers

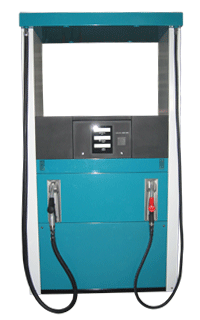

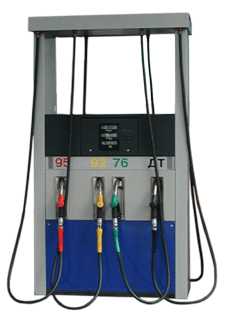

Two-product and multi-product fuel dispensers NOVA 25 with upper-fixed hoses.

fuel dispenser

fuel dispenser
Item Parameters and technical characteristics of fuel dispenser NOVA Slavutich
1 Fuel type Petrol, diesel fuel, kerosene
2 Limits of volume measurement basic accuracy, % 0,25
3 Volume measurement resolution, ml 10
4 Flow rate, l/min 45 / 80 / 140
5 Number of fuel types 1 ÷ 4
6 Number of nozzles, pcs 1 ÷ 8
7 Number of simultaneously served autos 1 or 2
8 Operating temperature range, °С - 40 ÷ +60
9 AC network power supply, V 380 (+ 10 / - 15)% 220 (+ 10 / - 15)%
10 Frequency, Hz 50 ± 1
11 Pump drive nominal power, kW 1,0 / 3,0
12 Maximum suction height, m 5,5
13 Suction height at 50 m-distance from the tank, m 5,0
14 Suction height at 70 m-distance from the tank, m 3,5
15 Electronic adjustment of fuel dispenser precision Available
16 Number of digits:
  • of 1-liter price
  • of total amount
  • of dispensed volume (l)

  4 digits

  6 digits

  6 digits
17 Saving of characteristics at planned and unplanned power interruption Available



Item Type Sides Number of products Number of nozzles
Flow rate, l/min
1 NOVA – 1202.25 1 2 2 2 x 45
2 NOVA – 1202.25/S 1 2 2 1 х 45 + 1 х 80
3 NOVA – 1303.25 1 3 3 3 x 45
4 NOVA – 1303.25/S 1 3 3 2 х 45 + 1 х 45
5 NOVA – 1404.25 1 4 4 4 x 45
6 NOVA – 1404.25/S 1 4 4 3 х 45 + 1 х 80
7 NOVA – 2102.25 2 1 2 2 х 45
8 NOVA – 2204.25 2 2 4 4 x 45
9 NOVA – 2204.25/S 2 2 4 3 х 45 / 1 х 80
10 NOVA – 2306.25 2 3 6 6 x 45
11 NOVA – 2306.25/S 2 3 6 5 х 45 / 1 х 80
12 NOVA – 2408.25 2 4 8 8 x 45
13 NOVA – 2408.25/S 2 4 8 7 х 45 / 1 х 80
14 NOVA – 2204.25/SS 2 2 4 3 х 45 + 1 х 130
15 NOVA – 2204.25SS 2 2 4 2 х 45 + 2 х 130
16 Satellite fuelling post 1 1 1х80 or 1х130



Fuel dispensers with vapor-recovery system (VRS):
Item Type Sides Number of products Number of nozzles
Flow rate, l/min
17 NOVA – 2204.25 V2 2 1+1 4 4 х 45
18 NOVA – 2204.25/S V2 2 1+1 4 3 х 45 / 1 х 80
19 NOVA – 2204.25 V4 2 2+0 4 4 х 45
20 NOVA – 2306.25 V4 2 2+1 6 6 x 45
21 NOVA – 2306.25/S V4 2 2+1 6 5 х 45 / 1 х 80
22 NOVA – 2306.25 V6 2 3+0 6 6 х 45
23 NOVA – 2408.25 V6 2 3+1 8 8 x 45
24 NOVA – 2408.25/S V6 2 3+1 8 7 х 45 / 1 х 80
25 NOVA – 2408.25 V8 2 4+0 8 8 х 45
Note: the figure after the “+” sign in the “number of products” column indicates the number of products for which the vapor recovery system is not installed, i.e. whether diesel is available or not.

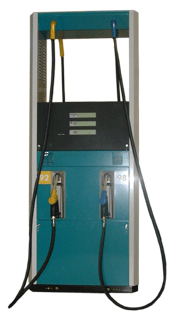

One-product and two-product fuel dispensers NOVA 35 with upper-fixed hoses

fuel dispenser
Item Type Sides Number of products Number of nozzles
Flow rate, l/min
1 NOVA – 1101.35S 1 1 1 1 х 80
2 NOVA – 2102.35 2 1 2 2 х 45
3 NOVA – 2102.35/S 2 1 2 1 х 45 / 1 х 80
4 NOVA – 2202.35 2 2 2 2 х 45
5 NOVA – 2202.35/S 2 2 2 1 х 45+1 х 80
6 NOVA – 2202.35S 2 2 2 2 х 80
7 NOVA – 2204.35 2 2 4 4 х 45
8 NOVA – 2101.35SS 2 1 1 1 х 130
9 NOVA – 2102.35/SS 2 1 2 1 х 45 + 1 х 130
10 NOVA – 2102.35SS 2 1 2 2 х 130
11 Satellite fuelling post 1 1 1х80 or 1х130
