Mechanical controller (small version)
Controller over electromechanical fuel dispensers is intended to be used in connection with a control system for petrol station (POS system, cash register, OPT terminal, etc) to provide direct control over operation of electronic and mechanical fuel dispensers by controlling dispenser’s internal resources: motor, pulse sensor, nozzle, slowdown valve.
Controller is supplied in 2 variants:

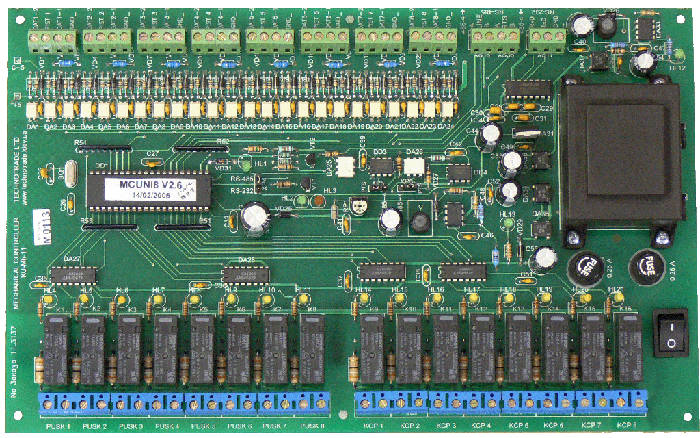

1. Controller intended for provision of control over up to 8 nozzles of fuel delivery dispensers (8 channels)

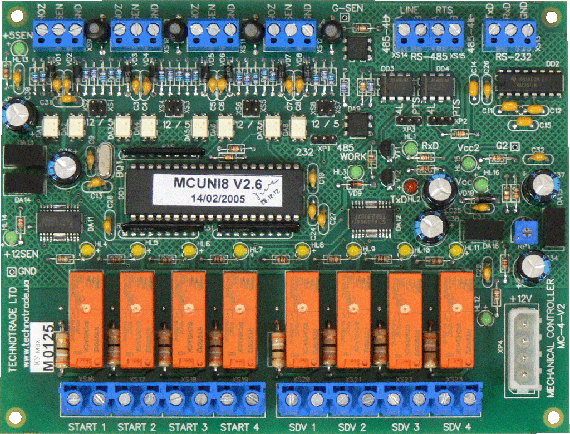

2. Controller intended for provision of control over up to 4 nozzles of fuel delivery dispensers (4 channels)
TECHNICAL CHARACTERISTICS
| Controller variant | 8 channels | 4 channels |
|---|---|---|
| Voltage | 187 V AC … 242 V AC | +12 V DC |
| Power consumption | 10 VA max | 300 mA max |
| Temperature range | -30°C ? +60°C | |
| Weight | 940 g | 230 g |
| Dimensions | 390 x 295 x 120 mm | 165 x 120 x 120 mm |
| Interface |
|
|
| Input communication protocol | UniPump | |
| Quantity of connected dispensing nozzles | 1 … 8 | 1 … 4 |
| Control | 1 controller can simultaneously control over 8 nozzles of delivery dispensers:
|
1 controller can simultaneously control over 4 nozzles of delivery dispensers:
|
| Signals received | 1 controller can receive signals from:
|
1 controller can receive signals from:
|
| Maximal ordered and dispensed doze | 9999,99 liters | |
| Maximum volume total counter values | 999999,99 liters | |
CONNECTION SCHEME

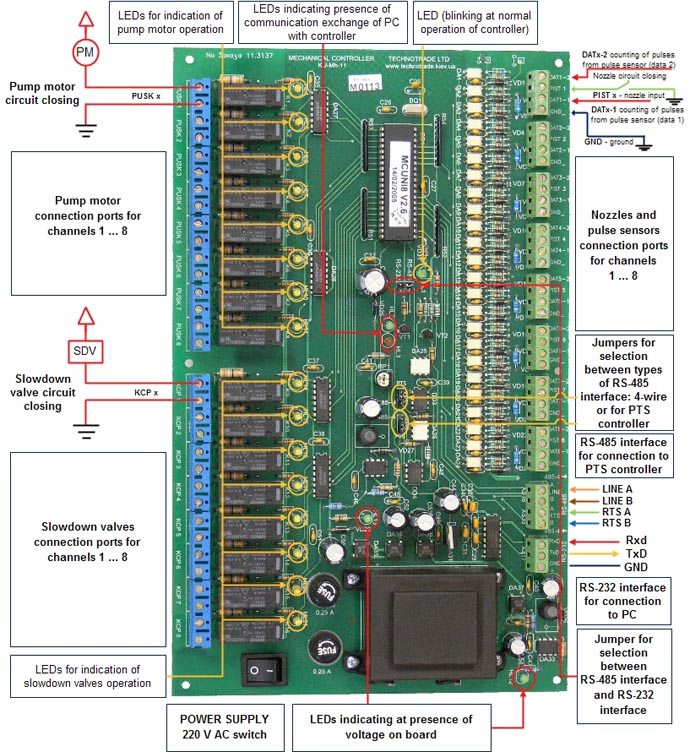

- Controller intended for provision of control over up to 8 nozzles of fuel delivery dispensers (8 channels)

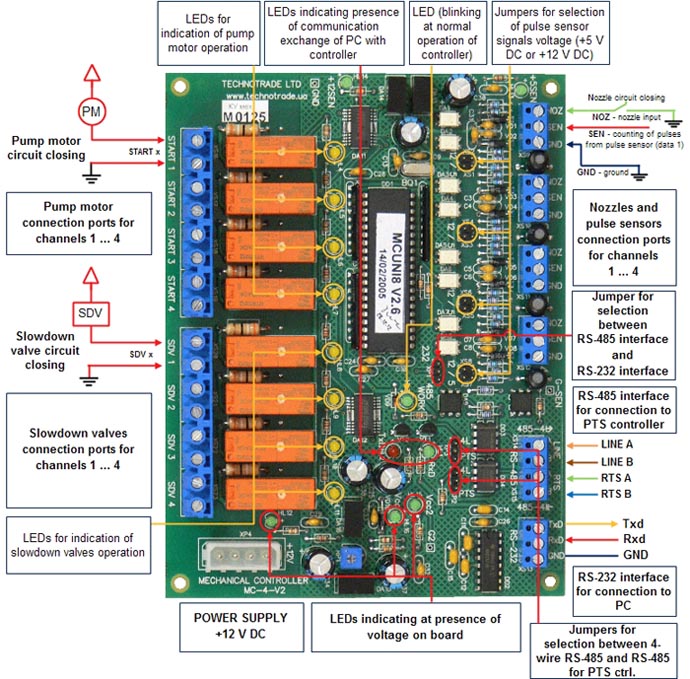

- Controller intended for provision of control over up to 4 nozzles of fuel delivery dispensers (4 channels)
