Self-service forecourt terminal Signal-1

PURPOSE

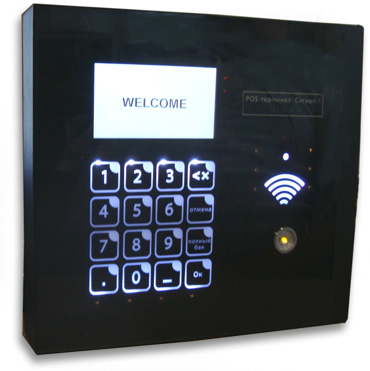

Self-service terminal Signal-1 - is an exceptional solution for self-service vehicle refuelling at petrol stations. It has wireless communication and is equipped with a built-in display, keyboard, RFID-reader and iButton-tags reader, allowing various flexible schemes for its usage:

• setting of volume/amount order to be dispensed from fuel dispensers
• fuel cards authorization (customer identification, current card’s balance and limits display, operations with cards and accounts)
• identification of fuel attendants
• self-service at petrol station

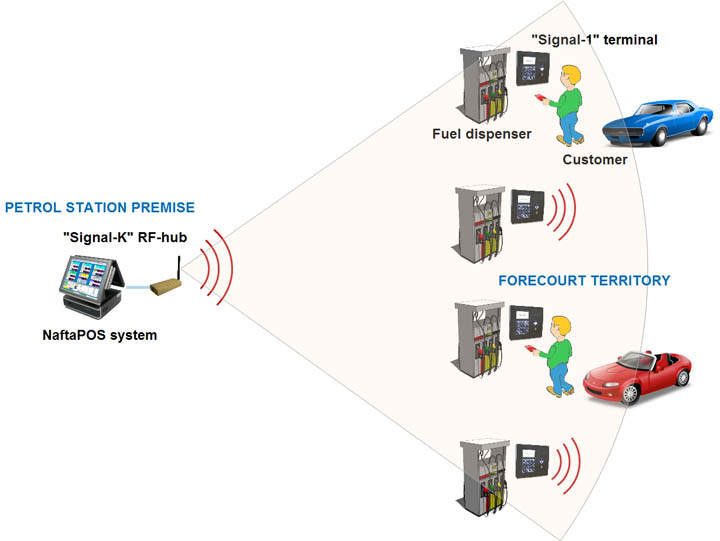

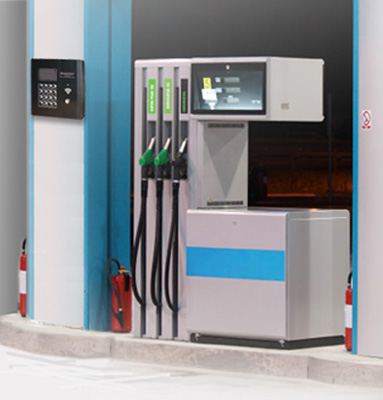

Terminal Signal-1 has explosion-proof case with 1ExibIIBT4 marking and can be mounted on fuel dispenser (pump). Terminal Signal-1 works in a structure of NaftaPOS system for petrol stations and also can be integrated with NaftaCards fuel cards system. Terminal Signal-1 communicates to NaftaPOS software through a radio-frequency hub Signal-K.

The terminal gives the following advantages compared to “traditional” way of petrol station operation, equipped only with POS system:

• decreasing of time on customer service due to remote identification and automated processing of requests on fuel dispensing
• simplification of settlements between petrol station and corporate customers using fuel cards
• reinforcement of fuel consumption control by corporate customers, exclusion of misuse possibilities

Besides petrol station the terminal Signal-1 can be applied for provision of wireless identification of fuel attendants or corporate customers on other industrial, trade or transport sights.

APPLICATION

One Terminal can be configured to service all fuel dispensers or any particular fuel dispenser (if installed on the fuel dispenser side). Sequence of customer servicing by Terminal (operation algorithm) can be further developed upon request.

Terminal Signal-1 can have a unique address in range from 1 to 15, which can be set using a DIP-switch. Signal-1 responses to requests, which sent only to its address. Data exchange between Signal-1 terminal and Signal-K RF- hub is done using wireless interface in non-licensed frequency range on 868 MHz in accordance with standard IEEE Std 802.15.4™-2006. Power of separate transceiver is not more than 10 W, which in most cases allows to apply the terminal without necessity to get any licenses. Data from RF-hub Signal-K to any Signal-1 terminal is transferred to distance up to 100 meters. Transferred data at transmission is protected from unauthorized access using AES-128 encryption-decryption method.

ORDER INFORMATION

		Self-service terminal Signal-1 Order code: SIG-TRM-001
		Signal-K RF-hub Order code: SIG-HUB-001
