North Falcon ATG consoles
North Falcon ATG consoles are intended for continious measurement of petroleum products levels (fuel and LPG), underproducts water level and temperature in tanks at petrol stations, tank farms and refineries. They allow to:
- lead tanks wet stock management
- display tanks status and measured values on screen
- easy and smart configuration tools through local graphical interface or web
- communication with station management systems
- automatic tanks reconciliation
- detection of dynamic and static leakages
- tanks auto-calibration
- detection of in-tank deliveries, trends, events, alarms recording
- others
SIBYLLA automatic tank gauging console #
Click on image to enlarge
Main features
- Wet stock management up to 36 tanks
- Wide graphical display with resistive graphical 7” TFT resistive touch screen
- Easy and smart configuration tools through local graphical interface or web
- Interface protocols with the main communication protocols used by the more common station management systems (Gilbarco, Doms, Dresser Wayne, Tokheim, etc.)
- Automatic reconciliation
- Dynamic and statically leakage
- Tank auto-calibration
- Deliveries, trends, events, alarms recording
- Pressure Level Leak Detection management (PLLD)
-
The display shows: Product level/mm
- Interface level/mm (water pesence detection)
- Real and compensate volume at 15 °C in liters
- Product mean temperature 5 temp. sensors
- Volume of empty part in liters (ullage)
System characteristics
- CPU Cortex ARM A7 @ 528 MHz processor
- 512 Mb DDR3L memory
- Storage event recording (8Gb micro-SD card)
Mechanical characteristics
- IP 41 protection degree polycarbonate enclosure
- Enclosure dimensions 280 x 170 x 60 mm
Electrical features
- Power supply 100-230 Vac
- N. 8 programmable input channels I/O digital or analogic 4-20 mA two wires
- Up to N. 4 programmable relais 125VAC 2A SPDT alarms output
- RS 485 field bus wiring
- N. 2 RS 232 (communication to POS and/or serial printer)
- Ethernet port
- N. 2 USB ports
- Integrated intrinsically safe barrier (up to 10 tanks)
HELIOS TFT automatic tank gauging console #
Click on image to enlarge
Main features
- Manages up to 4 tanks
- Colour 3,5” TFT touch screen graphical display
- Tank strapping table (100 linearization points)
-
The display shows:
- Product level/mm
- Interface level/mm (water pesence detection)
- Real and compensate volume at 15 °C in liters
- Product mean temperature 5 temp. sensors
- Volume of empty part in liters (ullage)
Mechanical characteristics
- Aluminum pressure die casting enclosure IP 68 degree protection up to 1 m. water submersion
Electrical features
- N. 4 programmable input channels I/O digital or analogic 4-20 mA two wires
- Up to N. 4 relays 125VAC 2A SPDT alarms output programmable
- N. 2 RS 485 field bus and system wiring
- RS 232: external serial printer
MARS automatic tank gauging display #
Click on image to enlarge
Main features
- Explosion proof design
- Manages up to 4 tanks
- Colour 3,5” TFT graphical display
- Tank strapping table up to 100 linearization points
-
The display shows:
- Product level/mm
- Interface level/mm (water presence detection)
- Real and compensate volume at 15 °C in liters
- Product mean temperature max. 5 temp. sensors
- Volume of empty part in liters (ullage)
Mechanical characteristics
- Aluminum pressure die casting enclosure IP 68 degree protection up to 1 m. water submersion
- N. 2 buttoms to activate the internal battery back up recovery and to change the pages
Electrical features
- N. 4 programmable input channels I/O digital or analogic 4-20 mA two wires
- Up to N. 4 relays 125VAC 2A SPDT alarms output
- N. 2 RS 485 field bus and system wiring
- RS 232: external serial printer

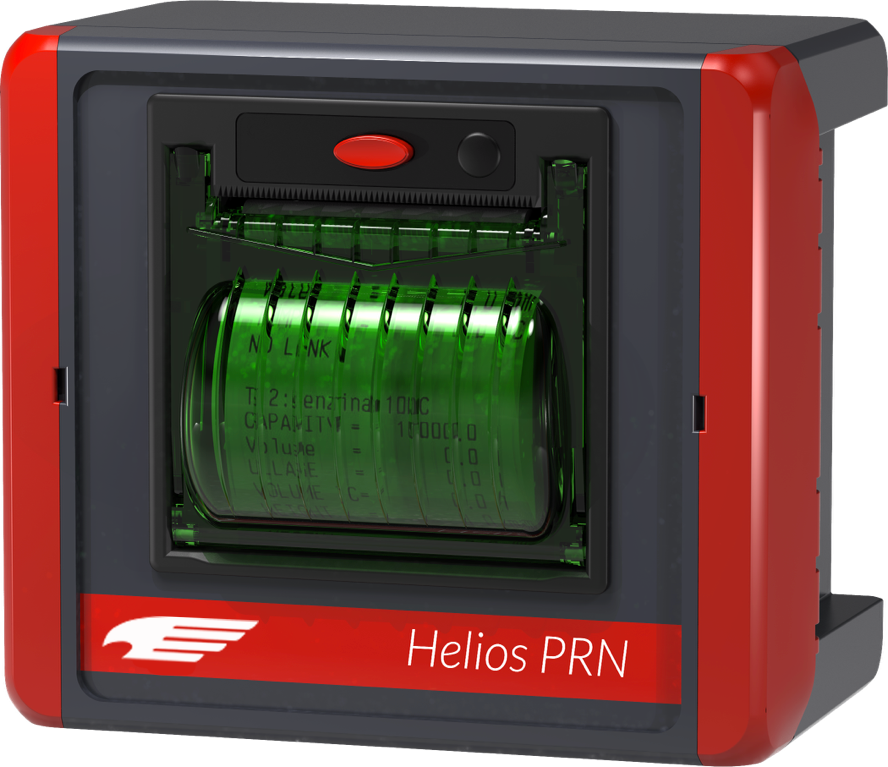

HELIOS PRN wall mounting printer #
Click on image to enlarge
Mechanical dial level indicator
- Wall mounting printer
- Polycarbonate IP41 enclosure
- Enclosure dimensions 151 x 125 x 60 mm
- 200 dpi high quality speed
- Width paper 58 mm
- Paper 55-70 g/mq, Ø 50 mm
- Power supply 220Vac
- 4Mb flash internal memory logos and fonts
- RS232 interface
- International fonts available
- Sensors: temperature head, paper presence
- UL, CE, FCC compliance
- Temperature extended -20 +70°C
