Fiscal module for petrol stations
Our company "TECHNOTRADE LTD" manufactures equipment for automation of petrol stations activity.

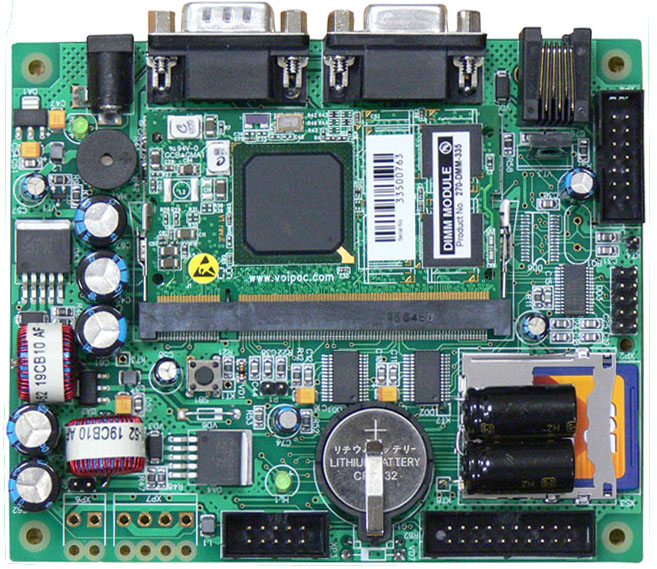

Fiscal module (FM) for petrol stations POS systems is designed to be used in a structure of a POS system or a cash register for petrol stations to provide:
- registration of sales,
- calculation of taxes,
- storing financial information in non-volatile memory,
- compilation of fiscal reports.
TECHNICAL FEATURES:
Specification:
| Voltage | 24 V DC |
|---|---|
| Current consumption | 1 A max |
| Temperature range | 0°C ÷ +70°C |
| Weight | 240 g |
| Overall dimensions | 122 x 107 x 20 mm |
Communication ports:
| PC port | RS-232 |
|---|---|
| PTS controller over fuel dispensers port | RS-232 |
| Receipts printer port | RS-232 |
| Pole display port | RS-232 |
| Cash drawer port | +12-24 V Key |
| Operation log port | RS-232 |
Communication protocols:
| Input protocol | FM_protocol (TECHNOTRADE LTD company private protocol) |
|---|---|
| Output protocol | UniPump protocol (TECHNOTRADE LTD company private protocol) |
FUNCTIONAL CHARACTERISTICS:
| Name | Quantity | Programming | Notes |
|---|---|---|---|
| 1. Working groups | 1 | ||
| 2. Products (services) | Up to 15000 | code name price products quantity tax group department products group |
0-2147483647 26 symbols |
| 3. Departments | Up to 16 | code name |
26 symbols |
| 4. Products groups | Up to 100 | code name |
26 symbols |
| 5. Tax groups, positive and negative | 6 6 |
tax in percents up to 99.99% for fiscal receipt (direct) tax in percents up to 99.99% for debit receipt (reverse) |
writing of tax rates in FM |
| 6. Cashiers | Up to 16 | name | 24 symbols |
| 7. Description of reservoir | Up to 16 | name measurement unit contracted fuel name |
16 symbols 4 symbols 12 symbols |
| 8. Filling places | Up to 16 | name | 12 symbols |
| 9. Payment forms | 8 |
Additional functional characteristics:
| Maximal cost value of product code | 9.999.999 |
|---|---|
| Maximal sum of purchases | 9.999.999 |
| Maximal cumulative sum during a day on tax group | 999.999.999 |
| Maximal sum of payments for fuel on each payment form | 999.999.999 |
| Maximal sum of dispensed fuel in liters | 9.999.999 |
| Duration of data storage in RAM at switching off power supply | > 1440 hours |
| Quantity of digits in pole display | 2 rows with 20 digits each |
| Quantity of decimal places | 0 – 3 |
| Receipt serial number | 1 – 2147483647 (with increase) |
| Quantity of daily reports with nulling | 2000 at 6 tax rates (6 direct and 6 reverse) |
Reports:
|
Tax reports from fiscal memory:
|
Fiscal and RAM memory of fiscal module are located on SD-flash card with a capacity no lesser than 64 MB. Fiscal memory stores fiscal data.
CONTROL OVER FUEL DISPENSERS:
FM through connected PTS controller over fuel dispensers is capable to provide simultaneous control over various types of electronic fuel delivery dispensers. Control over various fuel dispensers in FM is made through a common communication protocol UniPump, using which FM controls PTS. PTS controller supports various types of electronic fuel delivery dispensers of various manufactures: Wayne Dresser, Gilbarco, Tokheim, Nuovo Pignone, Tatsuno Benc, Adast, Slavutich, MM Petro, Shelf, Develco, Safe, Galileo, Petrotec and others using various exchange protocols (EASYCALL, DART, 2-WIRE, TOKHEIM, ZAP, BENC, SLAVUTICH, UNIPUMP, others).
Quantity of communication protocols depends on the version of PTS’s firmware. New protocols are to be added in future versions of firmware.
APPLICATION OF FM:
For developers under Windows OS FM is supplied together with API (FM_server Windows OS based service), which is capable of providing control over FM in Windows to facilitate and reduce development time.

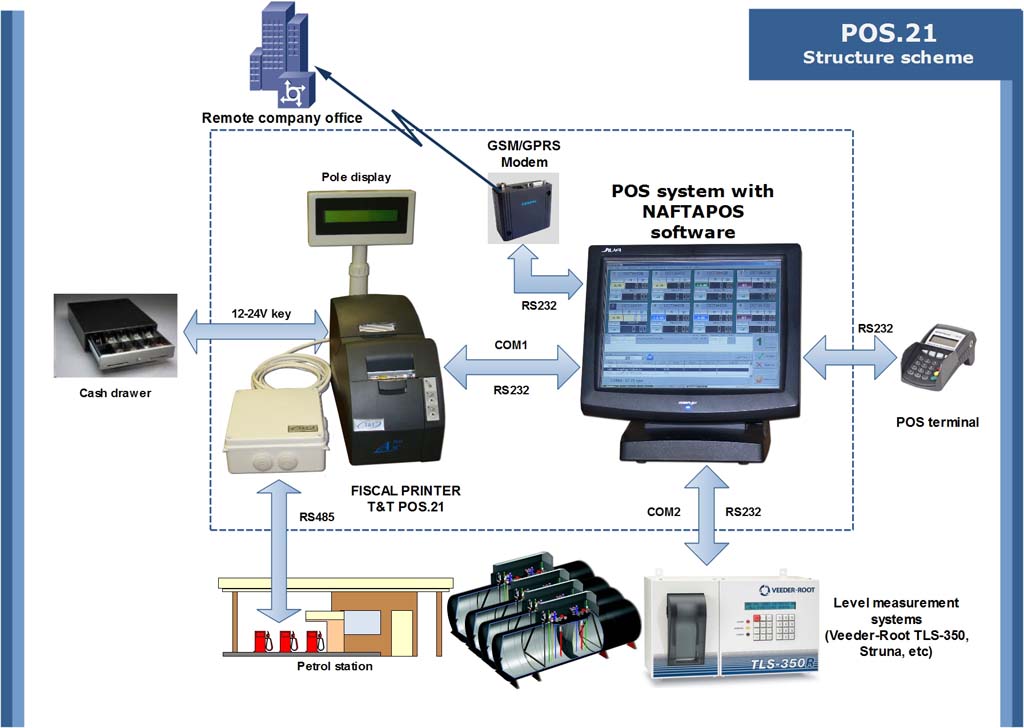

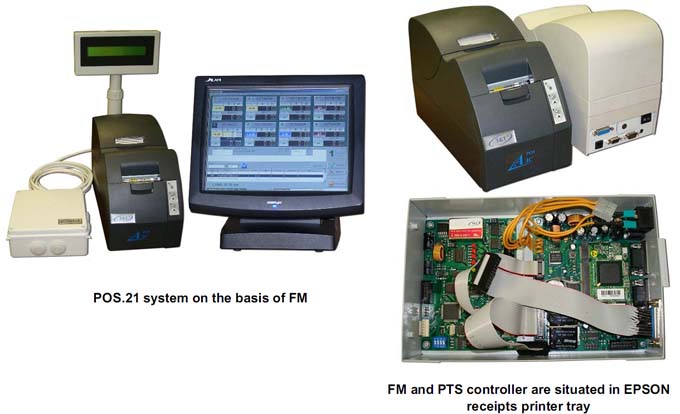

Technotrade’s POS system for petrol stations POS.21 FM with PTS controller are located in a tray of thermal receipts of Epson TM-T260F printers.
